EP94 DIY Sliding Bathroom Mirror




This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. The hardware is made from an aluminum angle, L-brackets, and ball bearings. This project costs about $80 and takes up to 6 hours to make.

SUPPLIES:

HomeMade Modern1/4” Plywood
Available at the Home Depot
I used strips of ¼” plywood on the upper shelf to keep the ball bearings on the track.

HomeMade Modern3/4” Plywood
Available at the Home Depot
I used strips of ¾” plywood to make the shelves.

HomeMade ModernWood Glue
Available at the Home Depot
I used water proof wood glue to glue the layers of plywood together.

HomeMade ModernMinwax Polycrylic
Available at the Home Depot
I finished the shelves with two coats of minwax polycrylic.



TOOLS:
HomeMade Modern DIY RYOBI ONE+ 18 Volt Cordless Drill

HomeMade ModernRYOBI ONE+ 18 Volt Cordless Drill Available at Home Depot












HomeMade Modern DIY RYOBI ONE+ Circular Saw

HomeMade ModernRYOBI ONE+ Table Saw Available at Home Depot

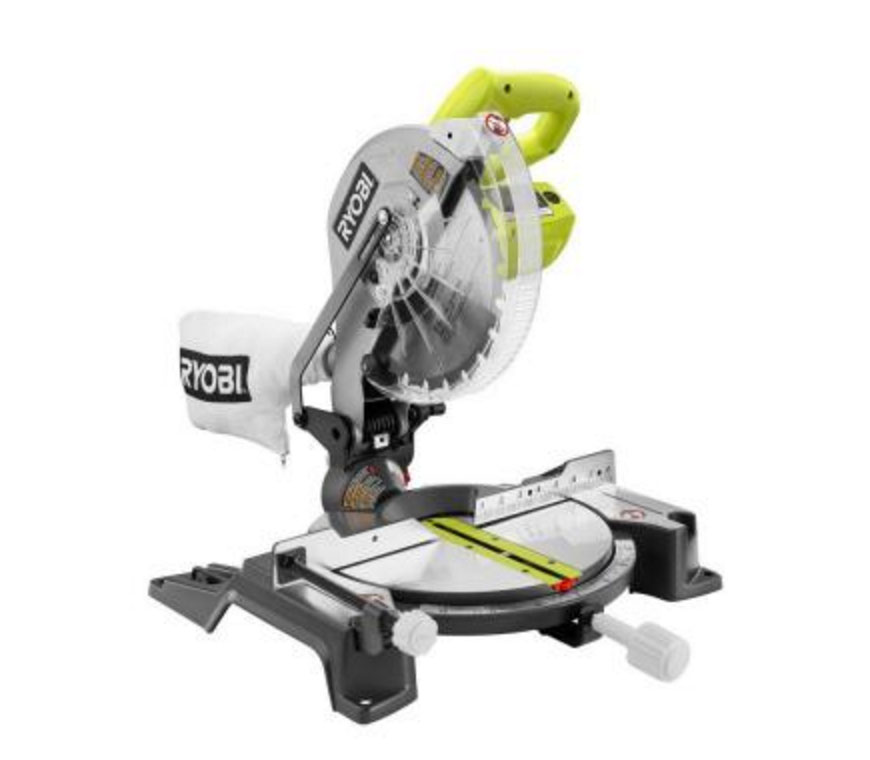

HomeMade Modern DIY RYOBI Compound Miter Saw

HomeMade ModernRYOBI Compound Miter Saw
Available at Home Depot










HomeMade Modern DIY RYOBI Orbital Sander

HomeMade ModernRYOBI Orbital Sander
Available at Home Depot

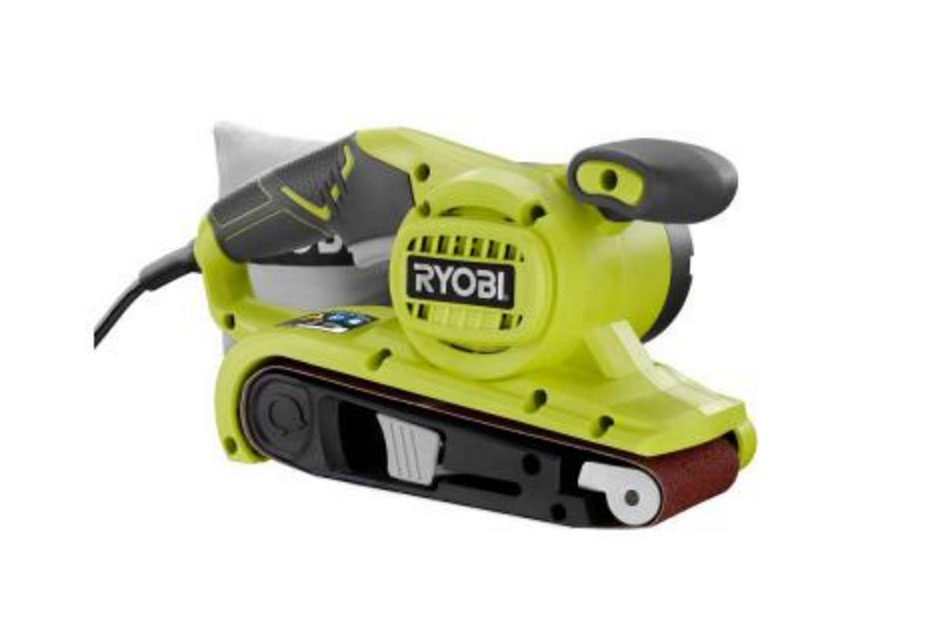

HomeMade Modern DIY RYOBI Belt Sander

HomeMade ModernRYOBI Belt Sander
Available at Home Depot








INSTRUCTIONS:

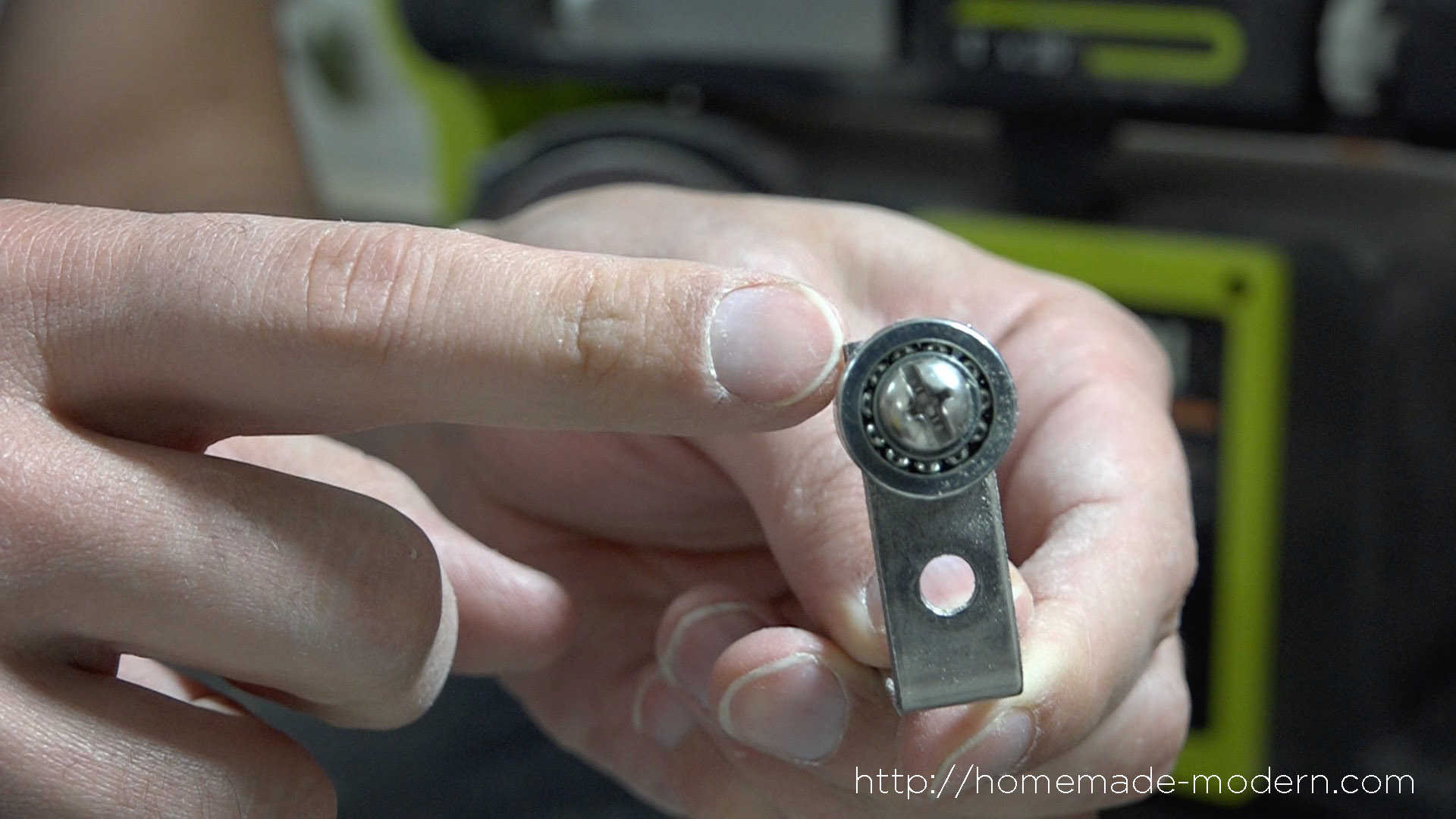

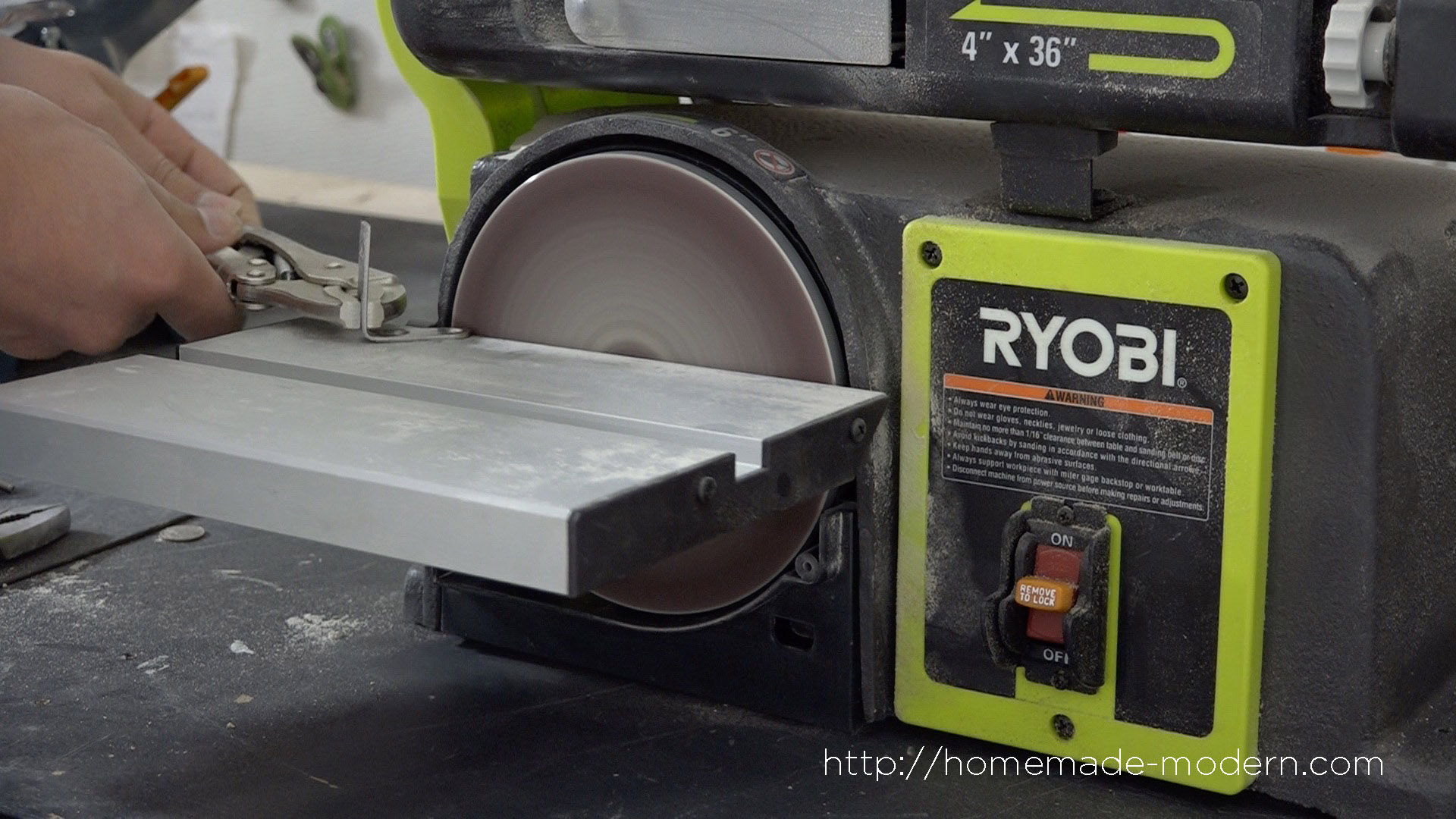

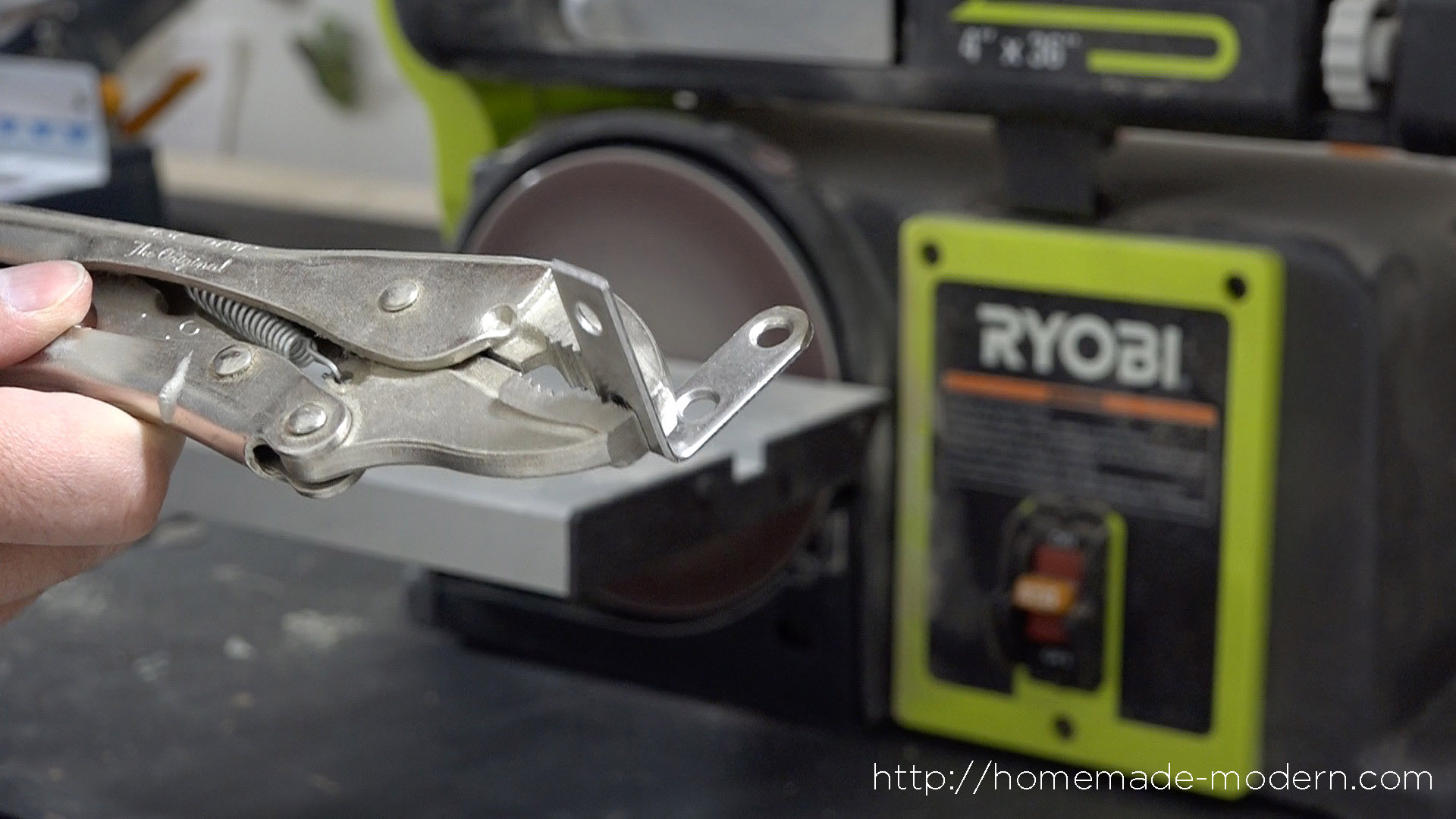

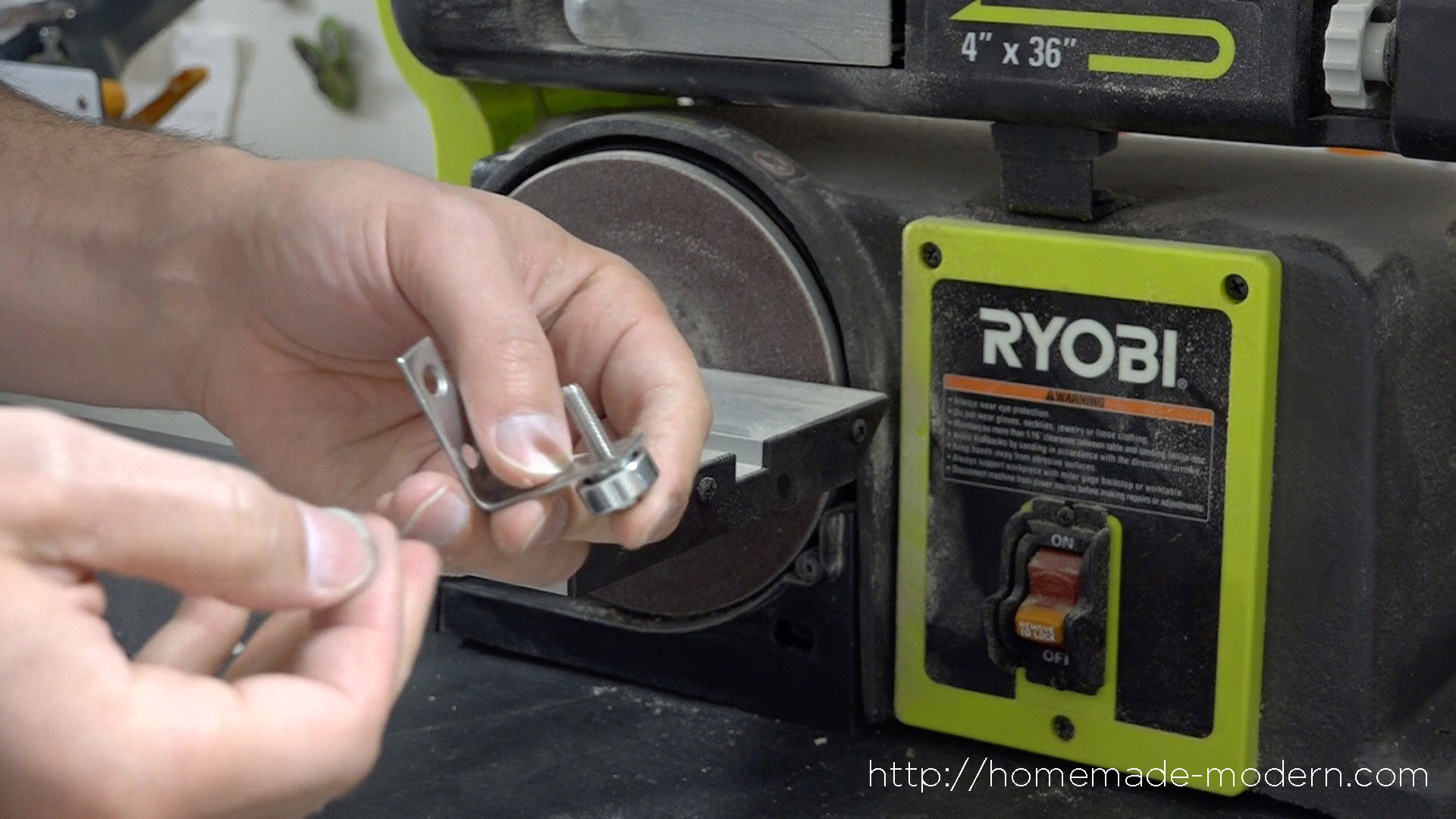

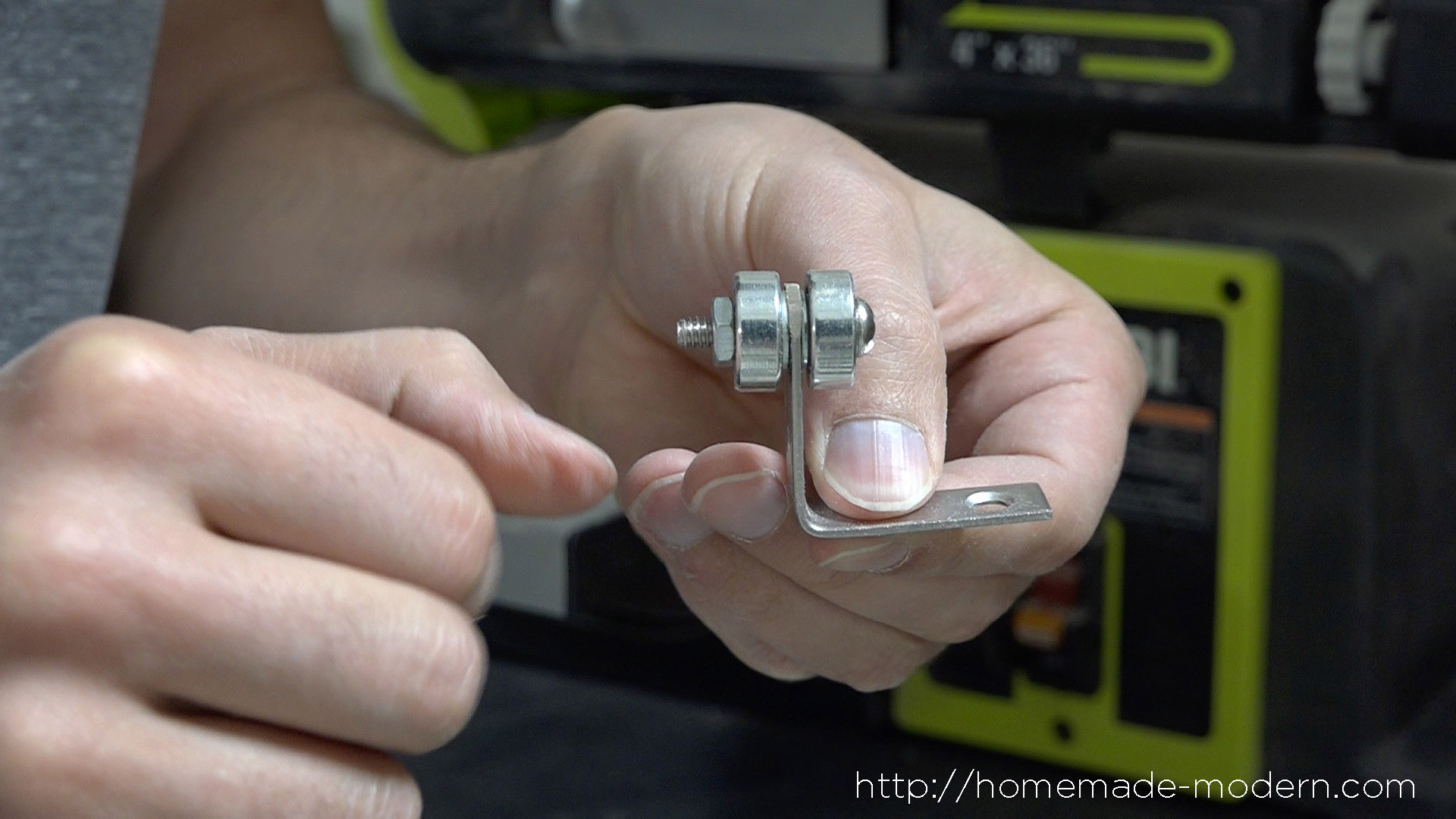

STEP 1: Grind the L-Brackets
I am make thing the sliding hardware by bolting ball bearings on either side of the L-brackets. I put small washers in between the brackets and the ball bearings. The corners of the L-brackets stick out beyond the ball bearings so I ground them down with my belt sander.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

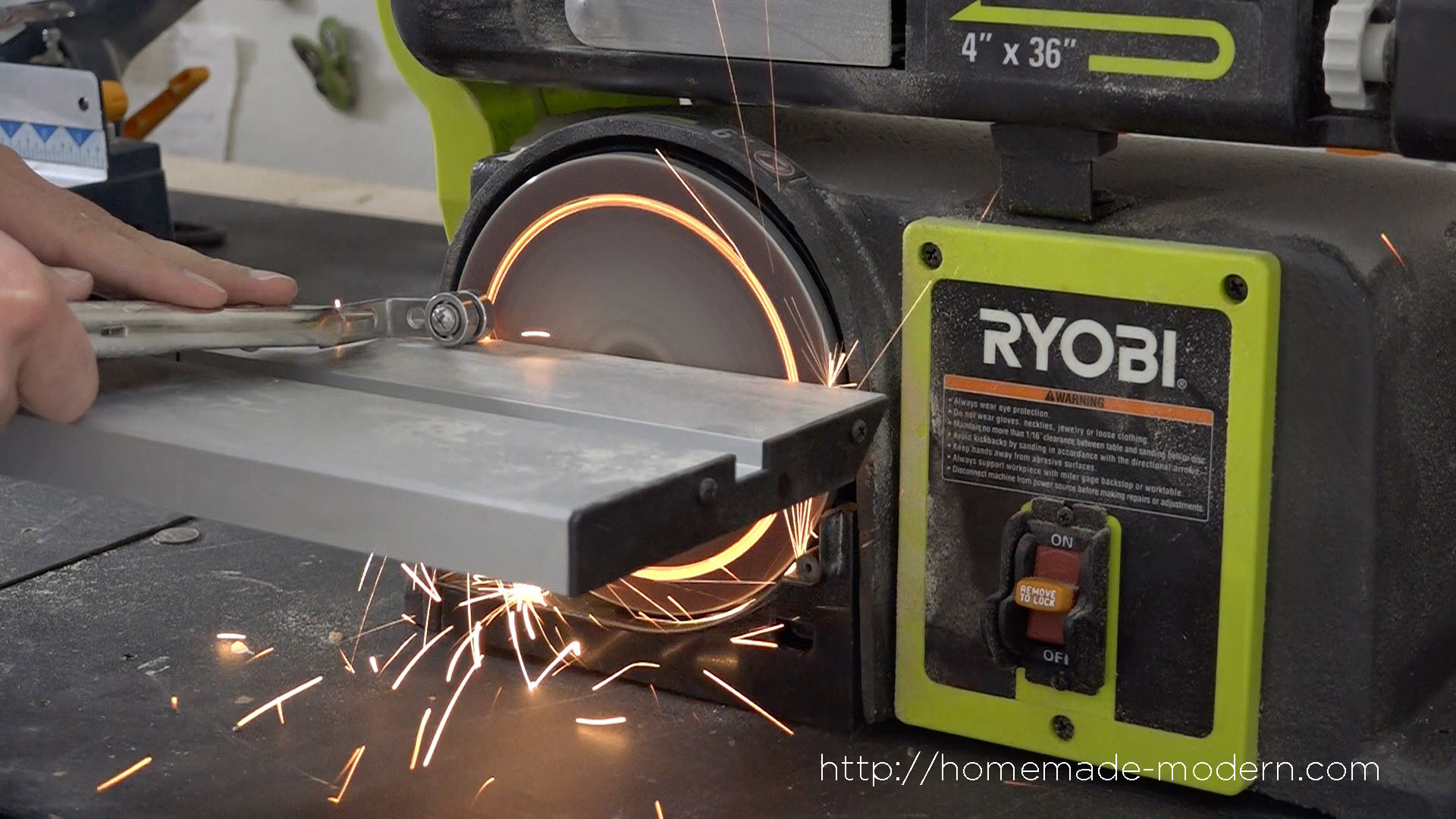

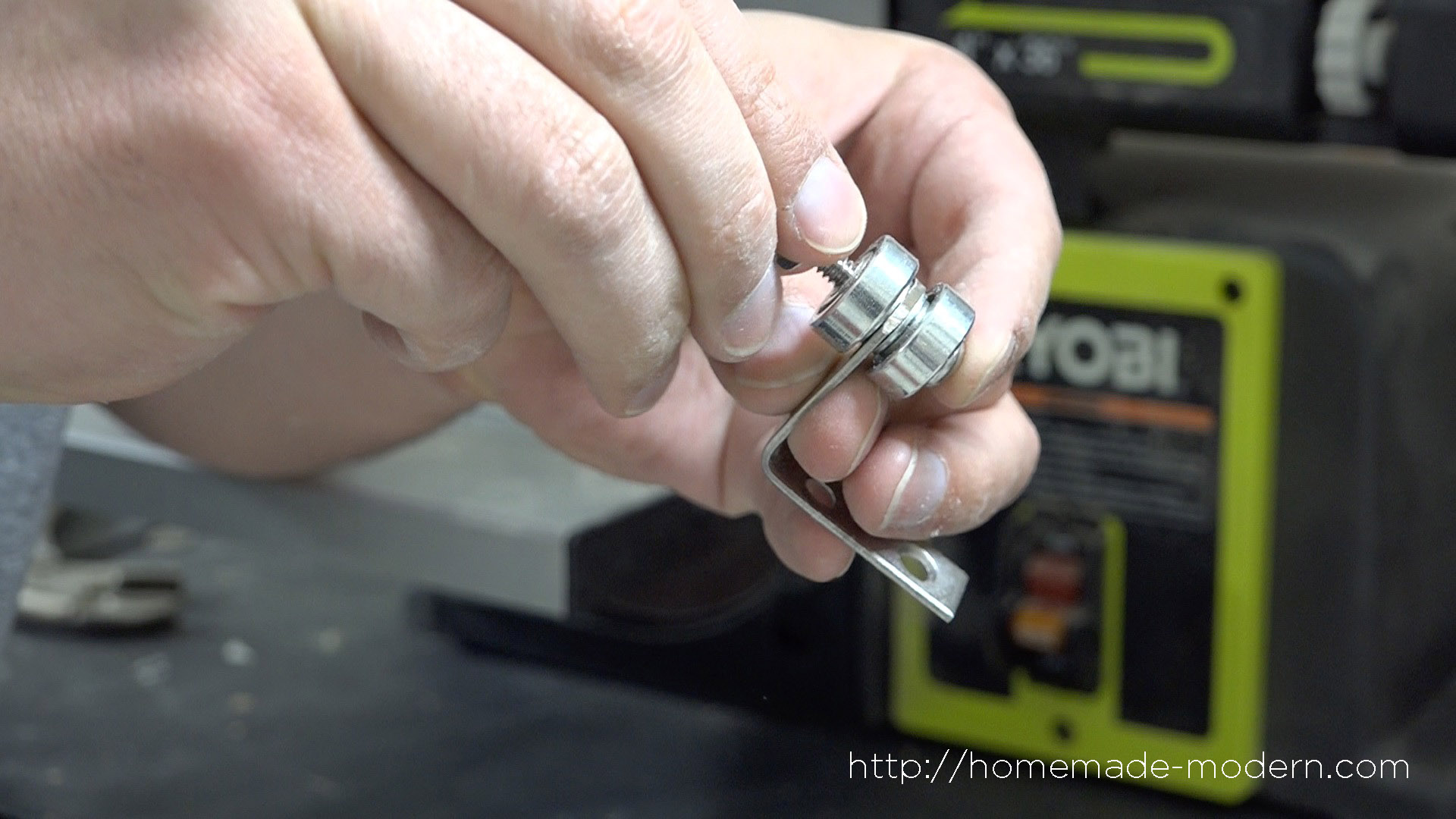

STEP 2: Grind Down the Bolts
The bolts where too long so I ground those down so that they were flush with the nut that secured the ball bearings.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

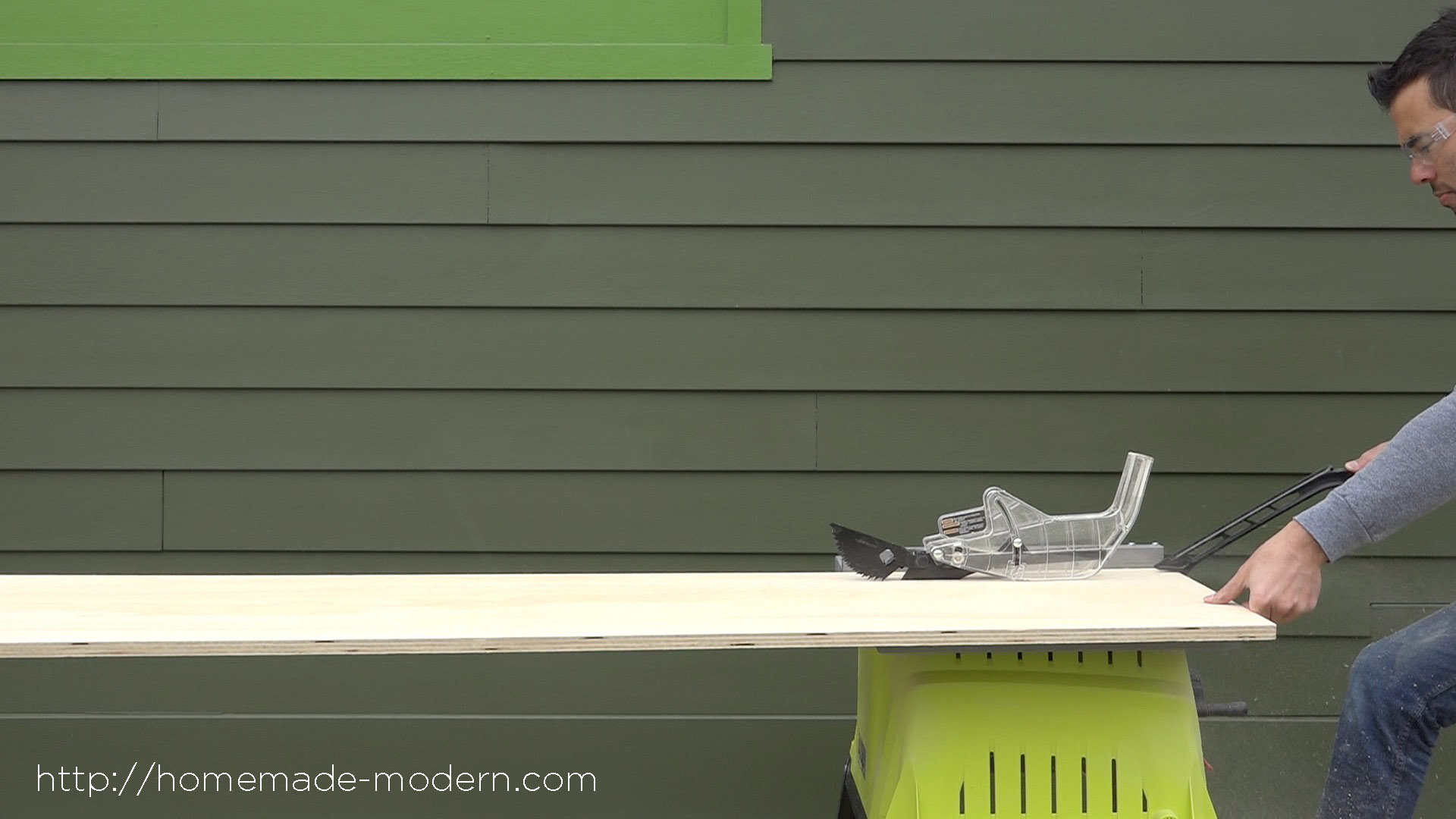

STEP 3: Rip the Plywood
I used my table saw to rip the ¾” plywood into 3” strips and 1” wide strips. I ripped the ¼” plywood into strips that were 1 ¼” wide.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

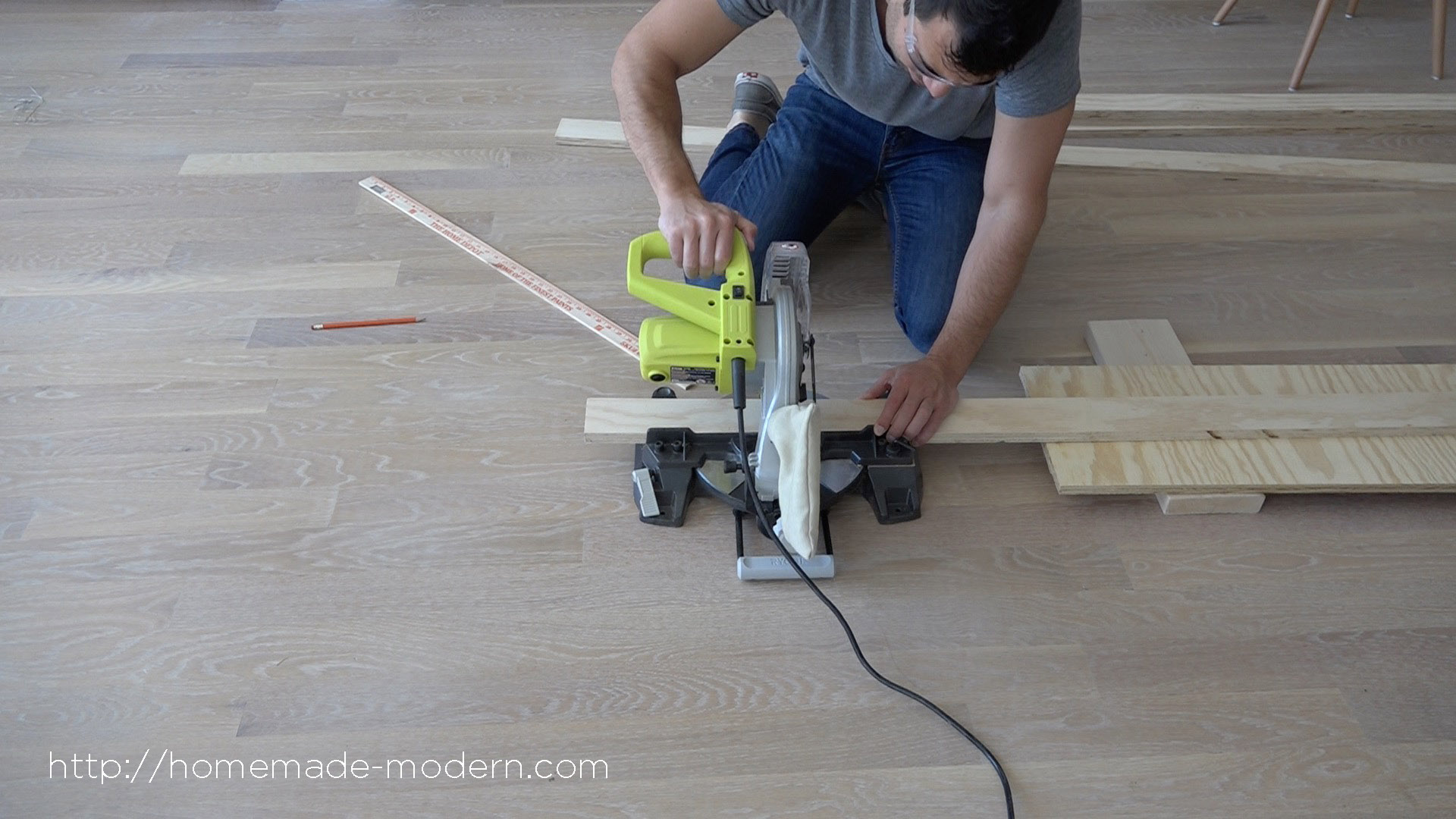

STEP 4: Cut the Strips to Length
I used my miter saw to cut the strips to length. I am making the shelves about 9 feet long so that they extend the full length of my bathroom.


This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

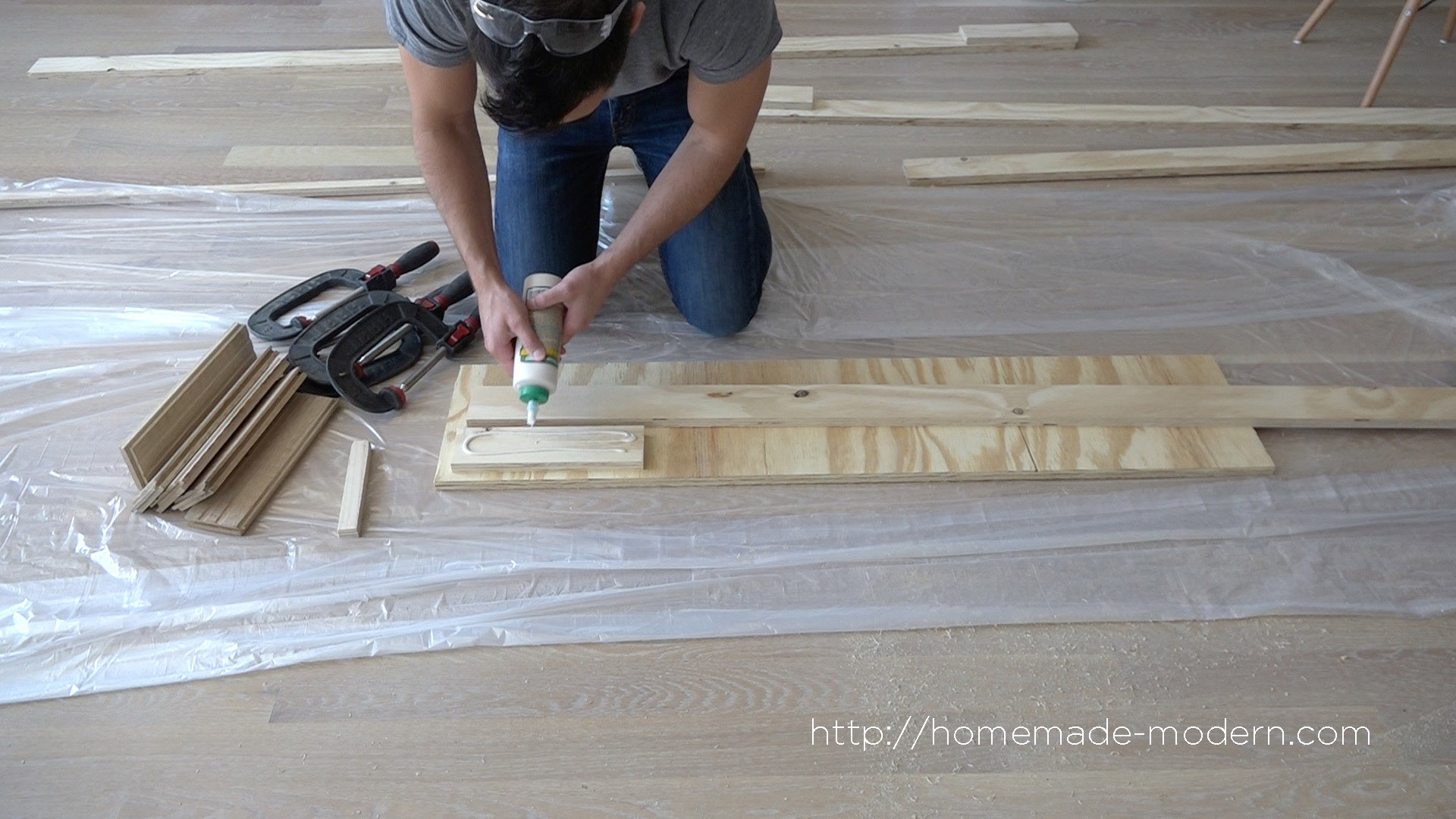

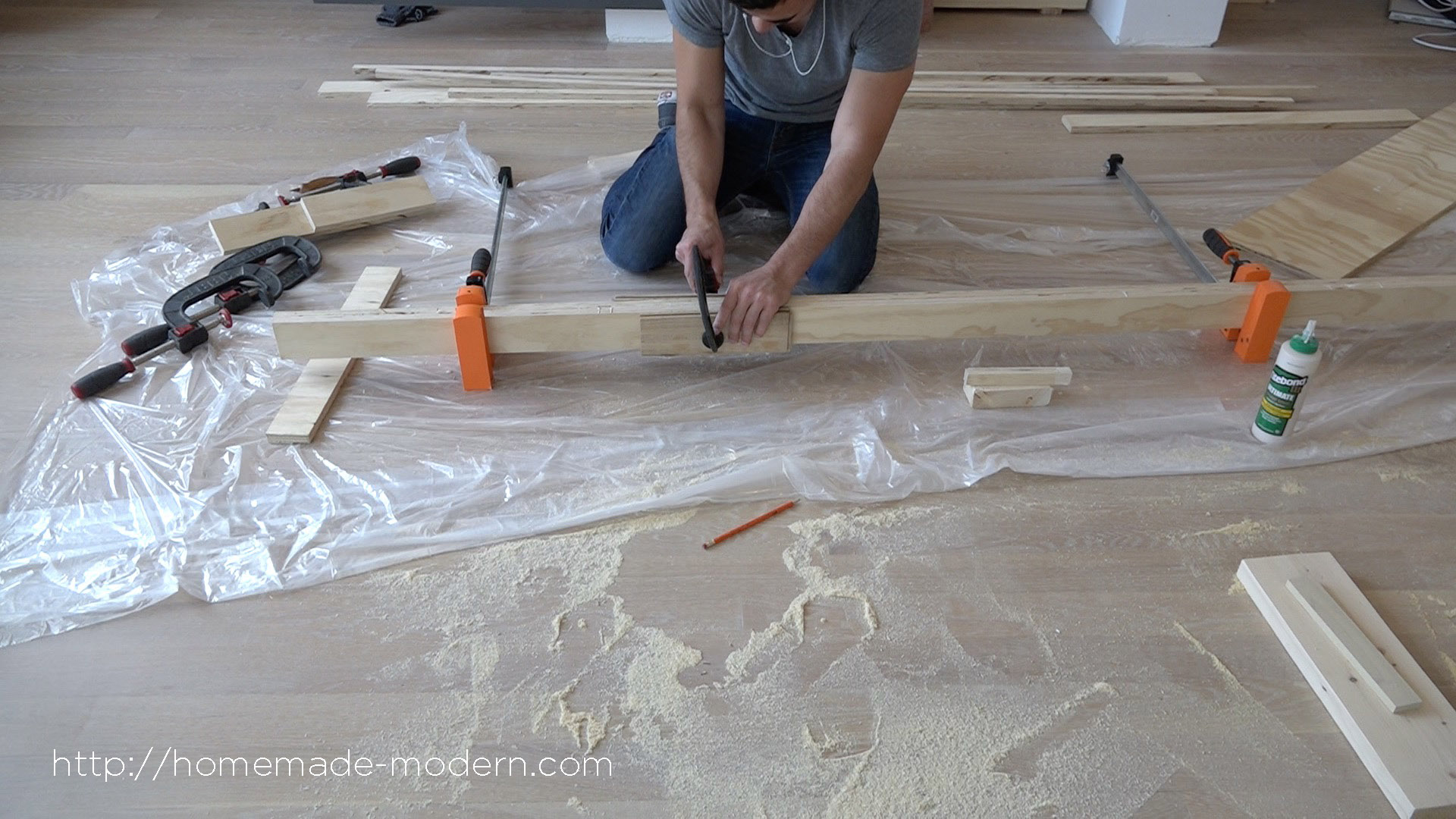

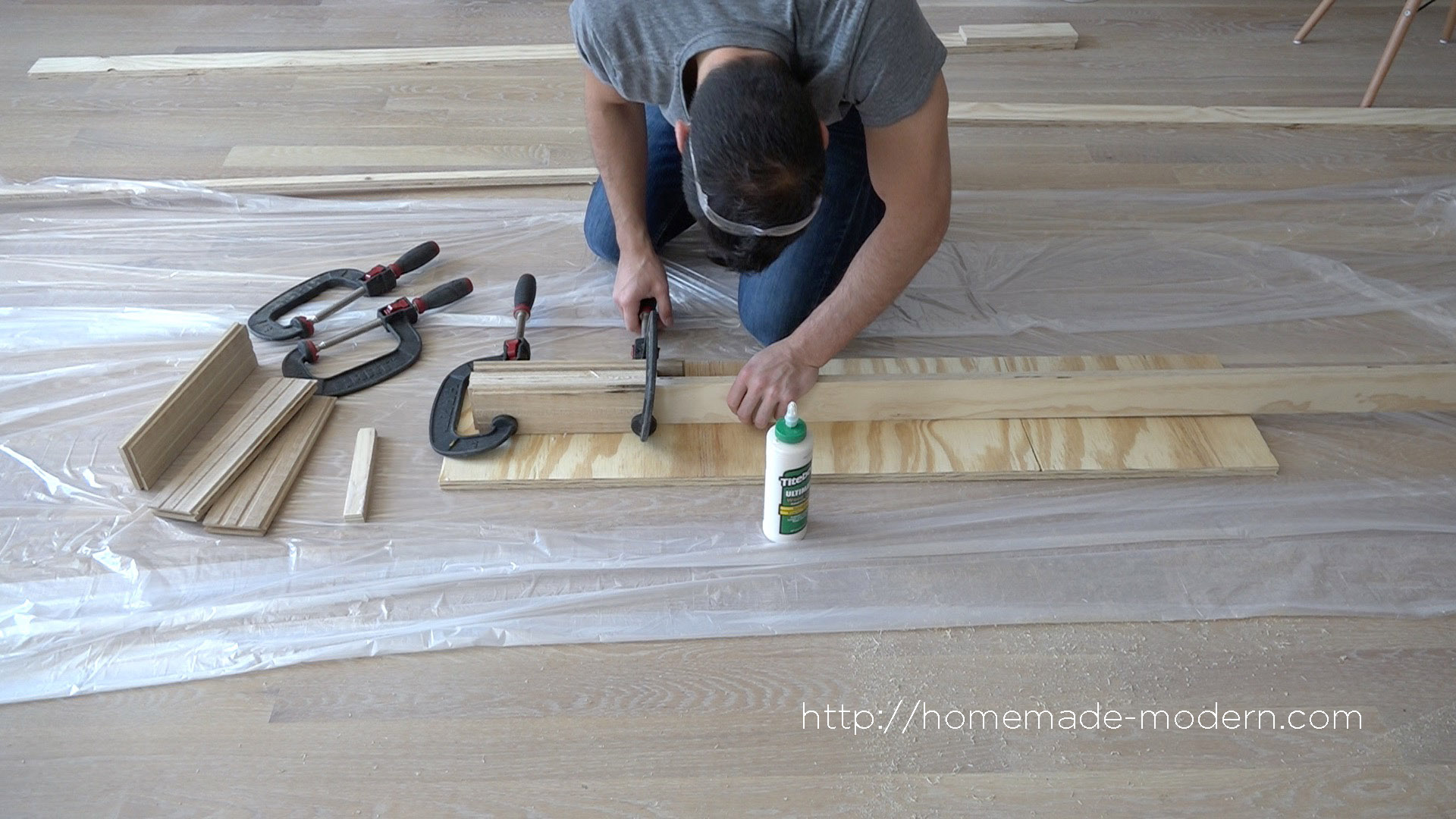

STEP 5: Glue the Shelves
I used waterproof wood glue to bond the layers of plywood together. I clamped the boards tightly together while the glue dried.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

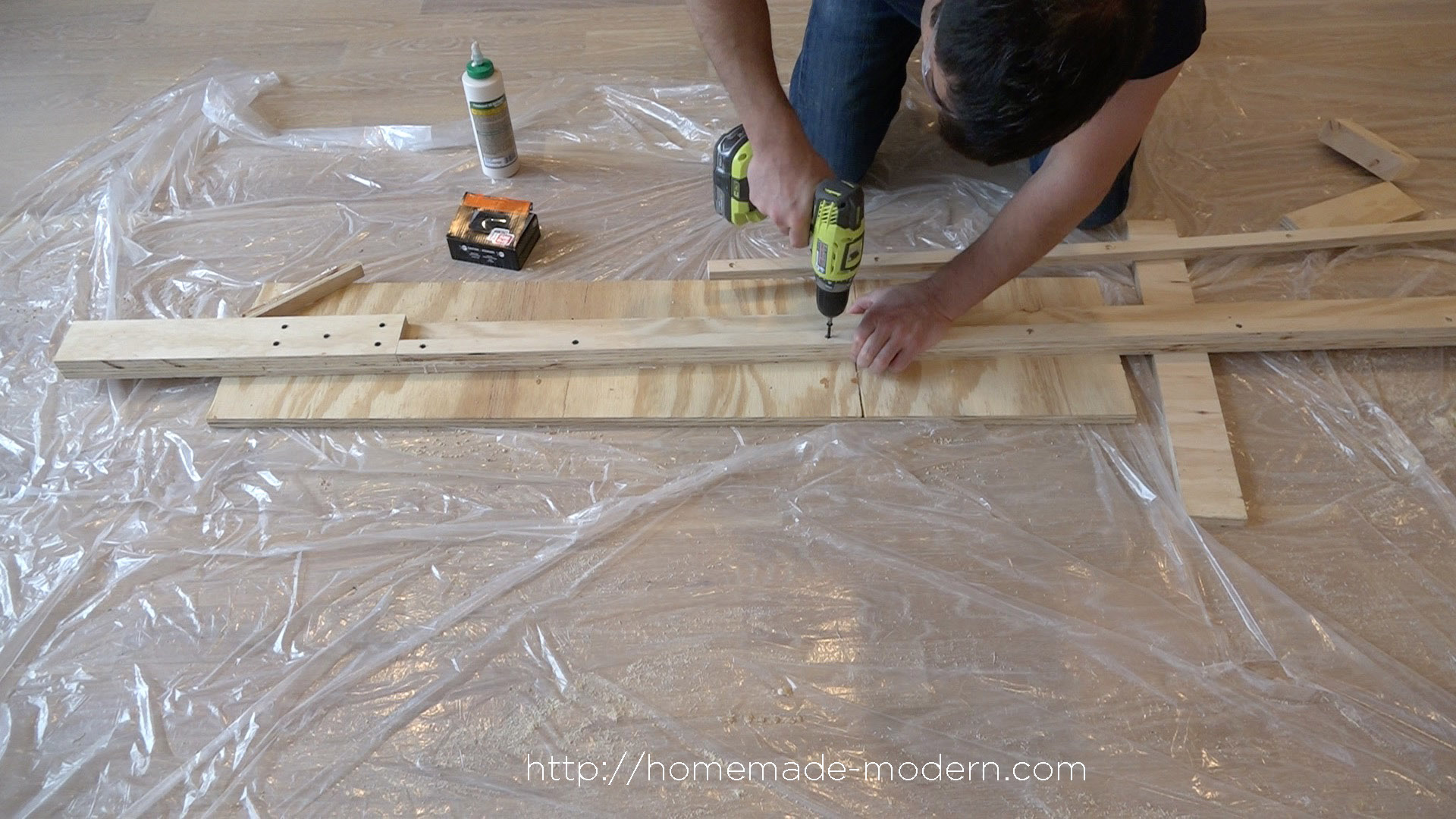

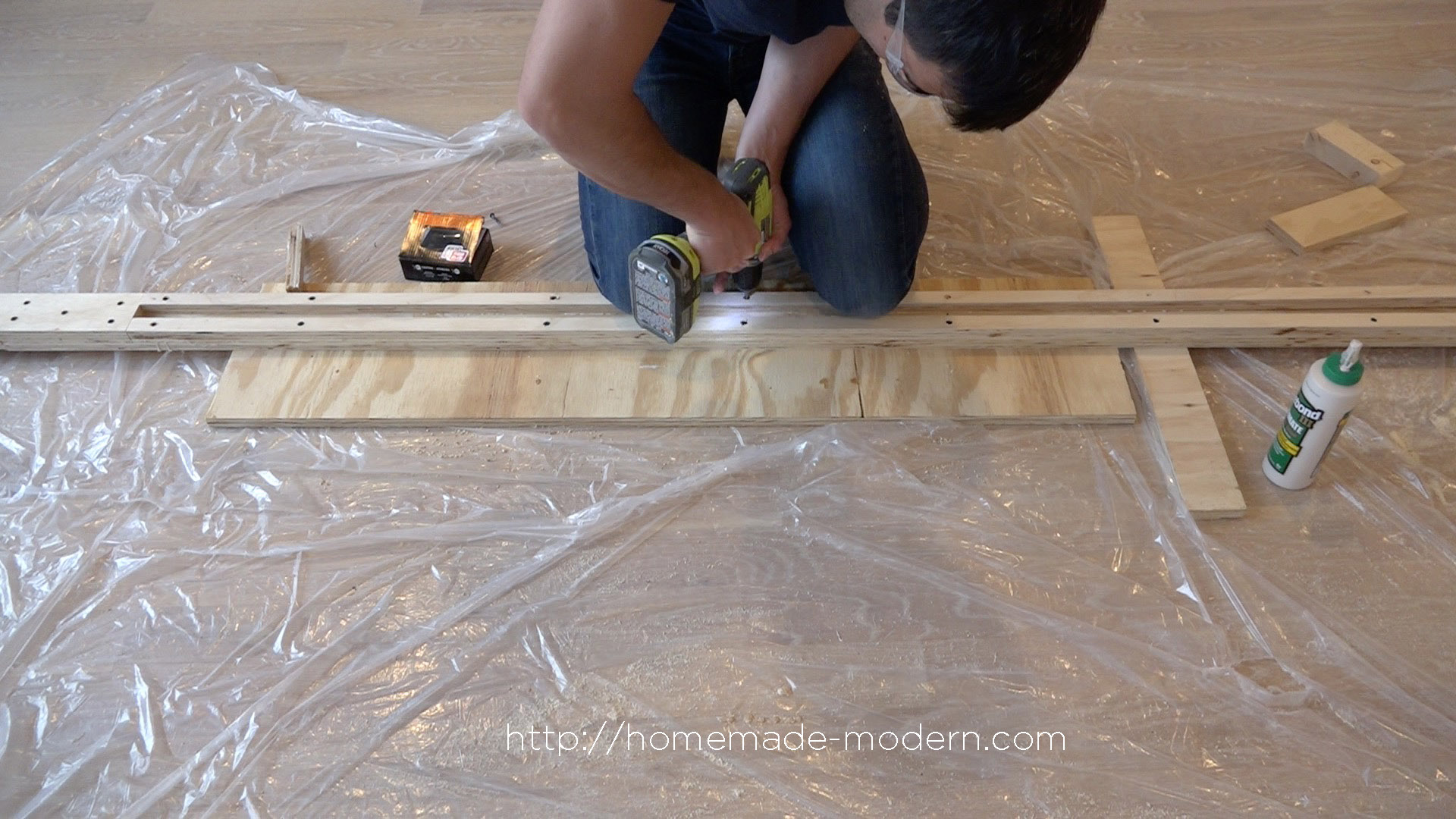

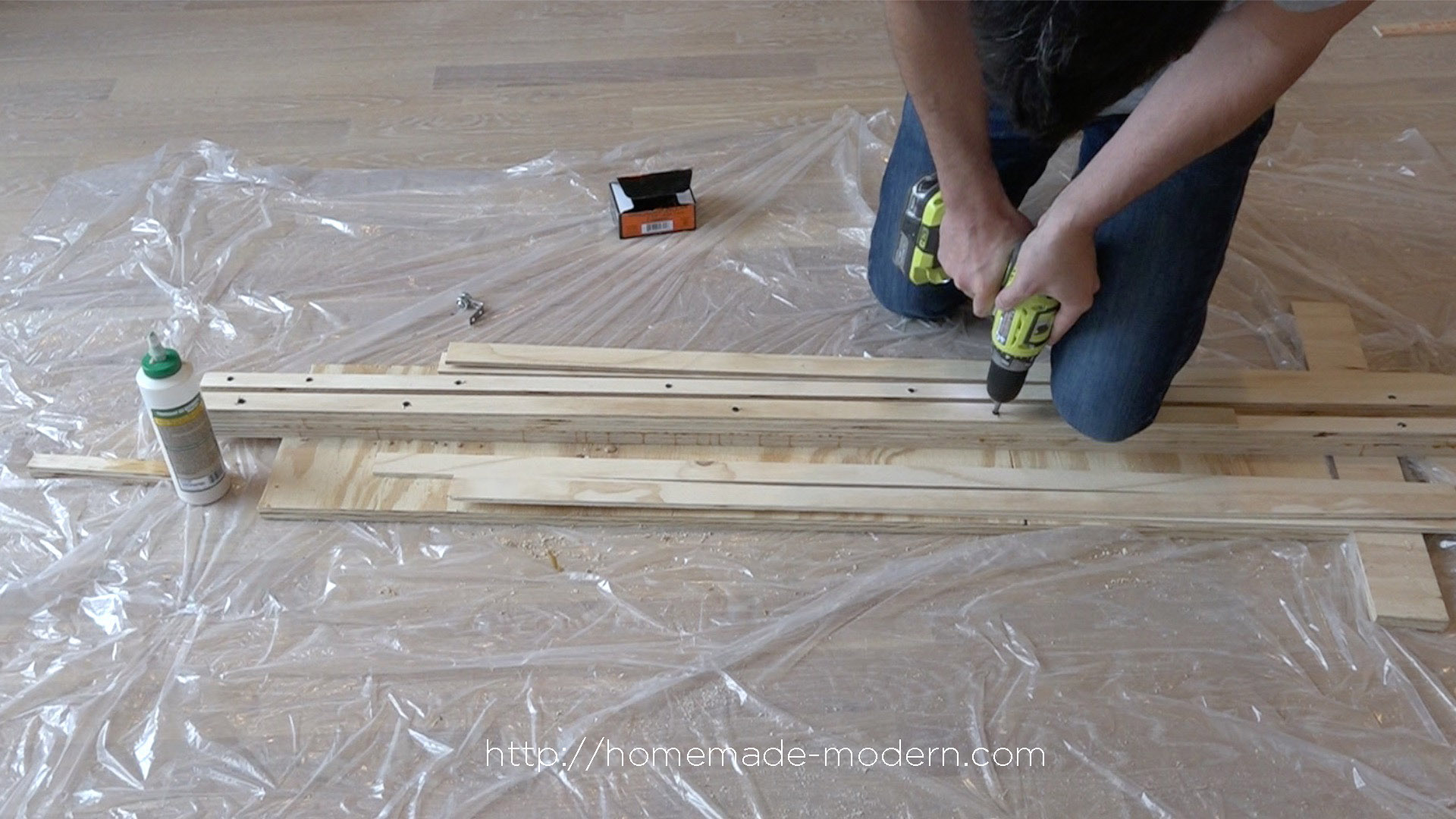

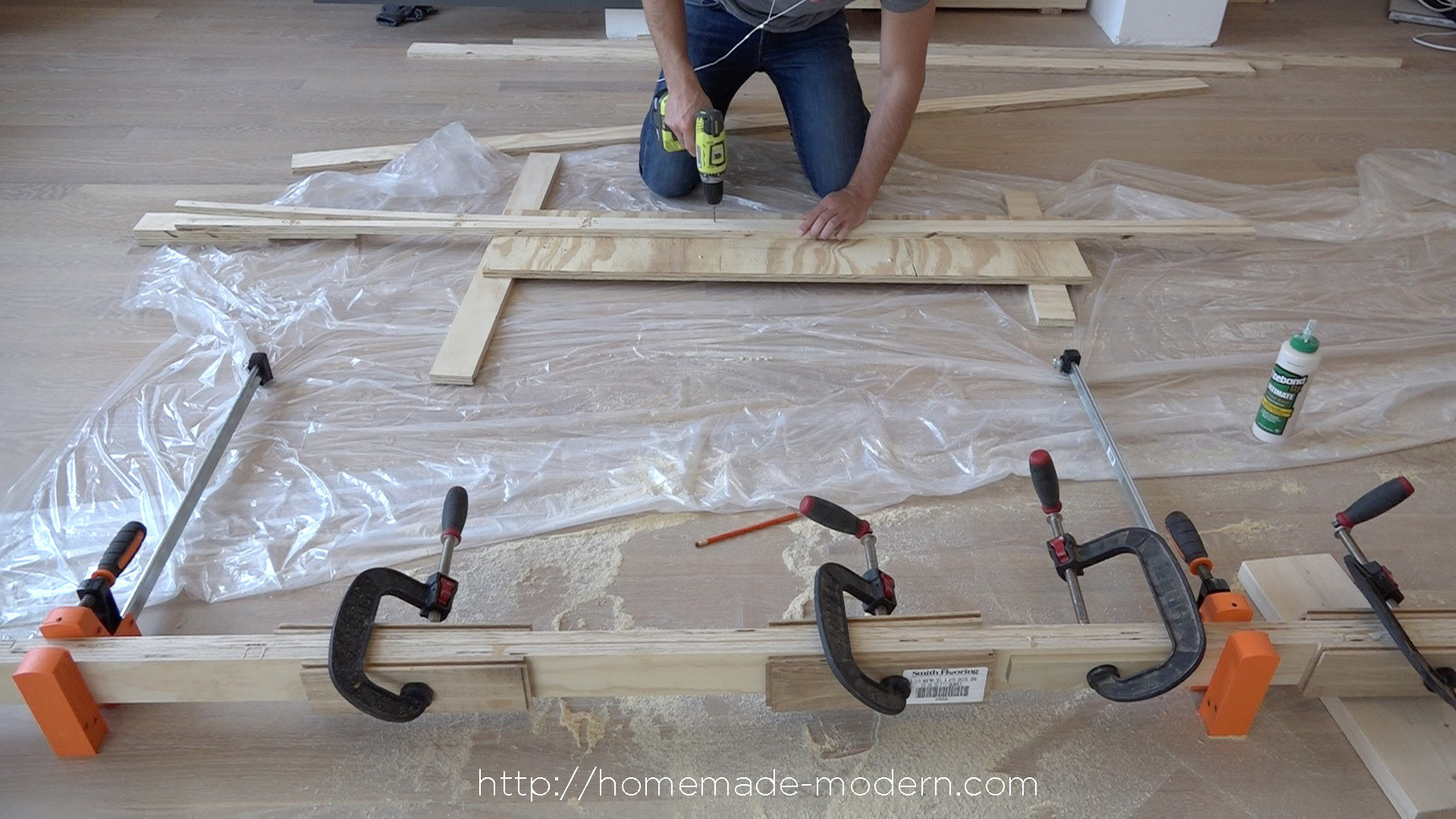

STEP 6: Screw on the Strips
I pre-drilled holes in the 1” wide strips of ¾” thick plywood and then glued and screwed those strips to the 3” wide strips. The center gap between the 1” strips is the track for the ball bearings. I screwed on the ¼” strips to make a lip that keeps the bearings on the track. I didn’t use glue with these ¼” thick strips since I want to be able to unscrew them to put the mirror in place.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

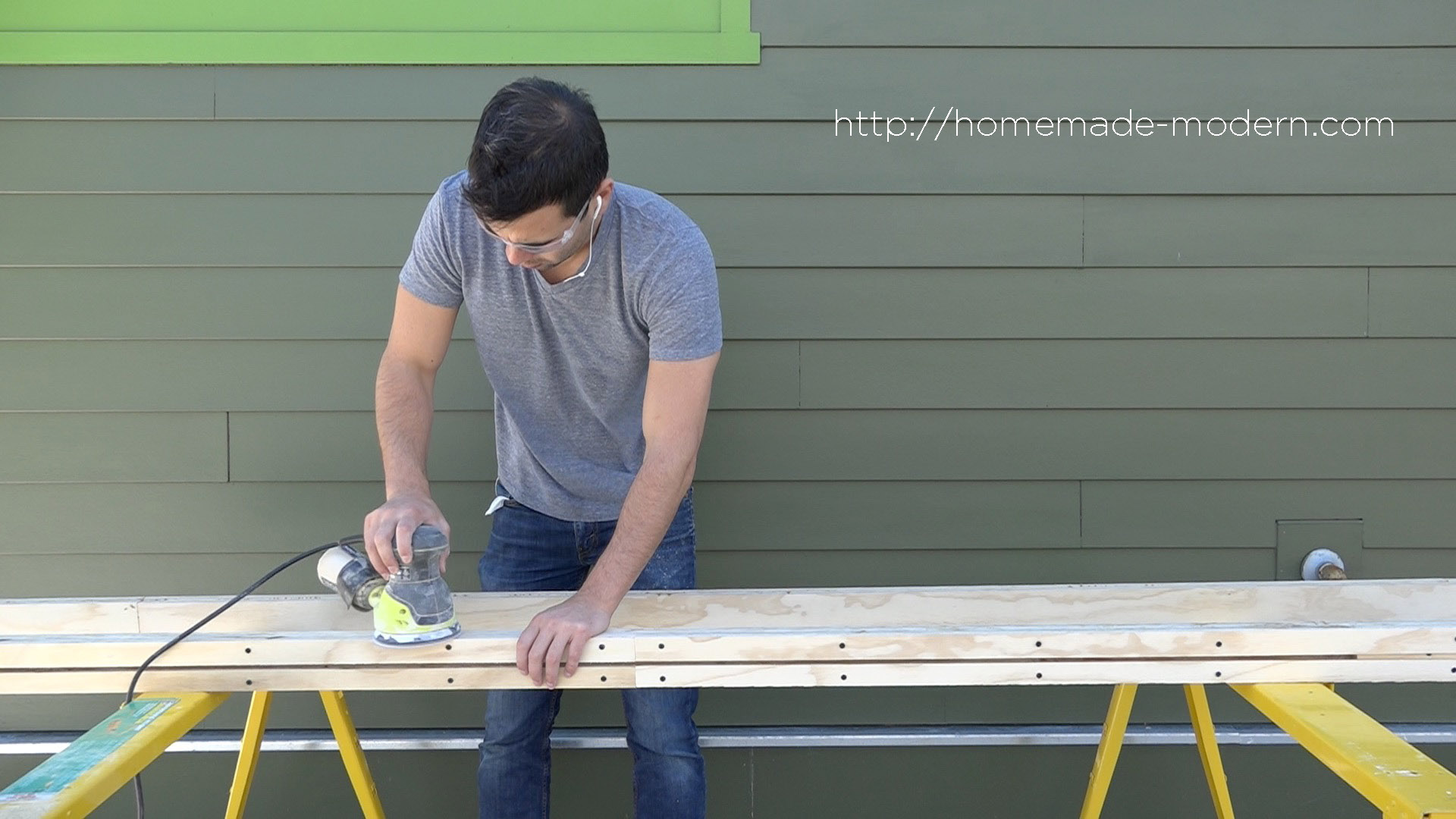

STEP 7: Sand the Shelves
I used my orbital sander to sand the shelves.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

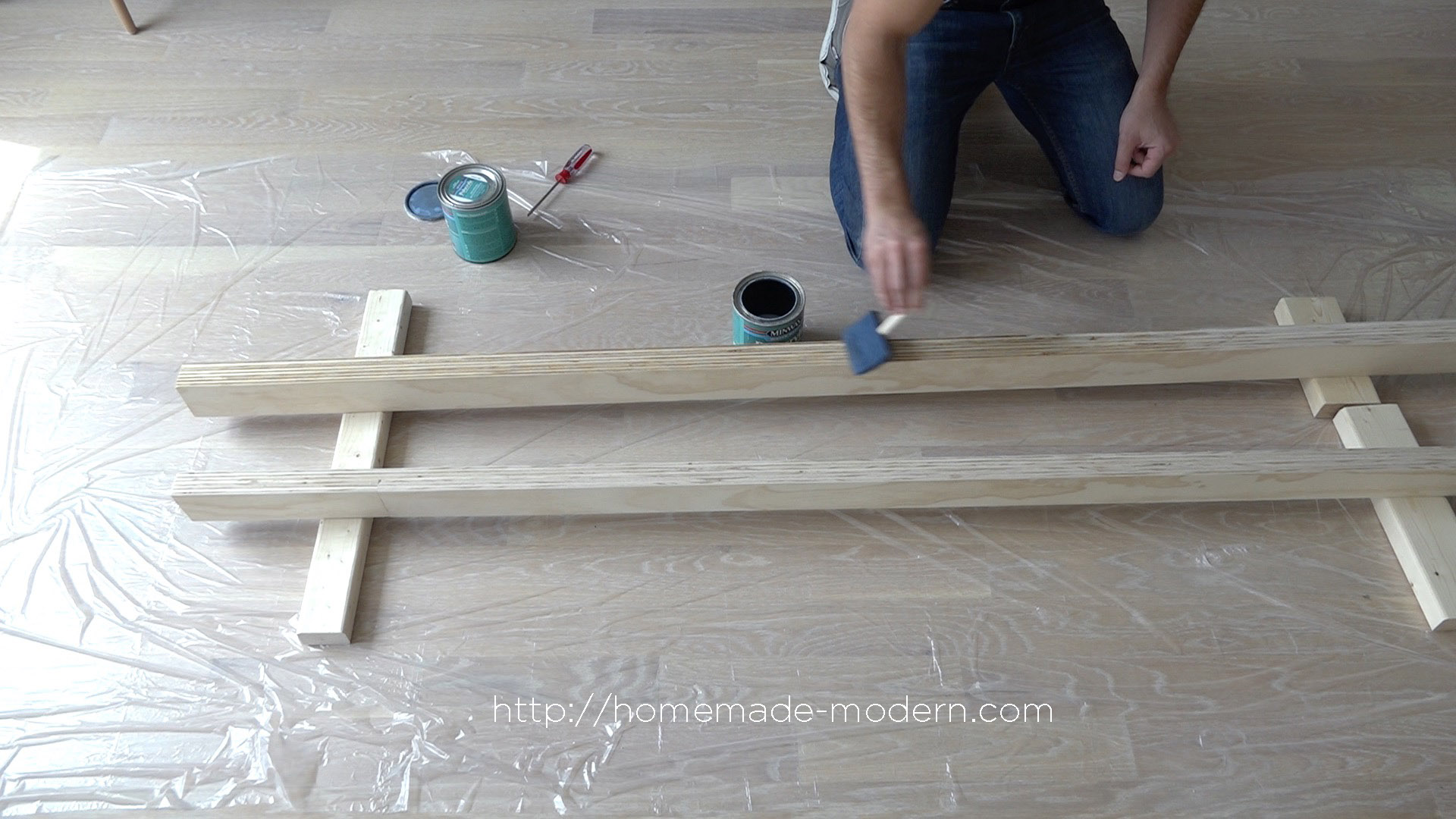

STEP 8: Clear Coat the Shelves
I finished the shelves with 2 coats of minwax polycrylic.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

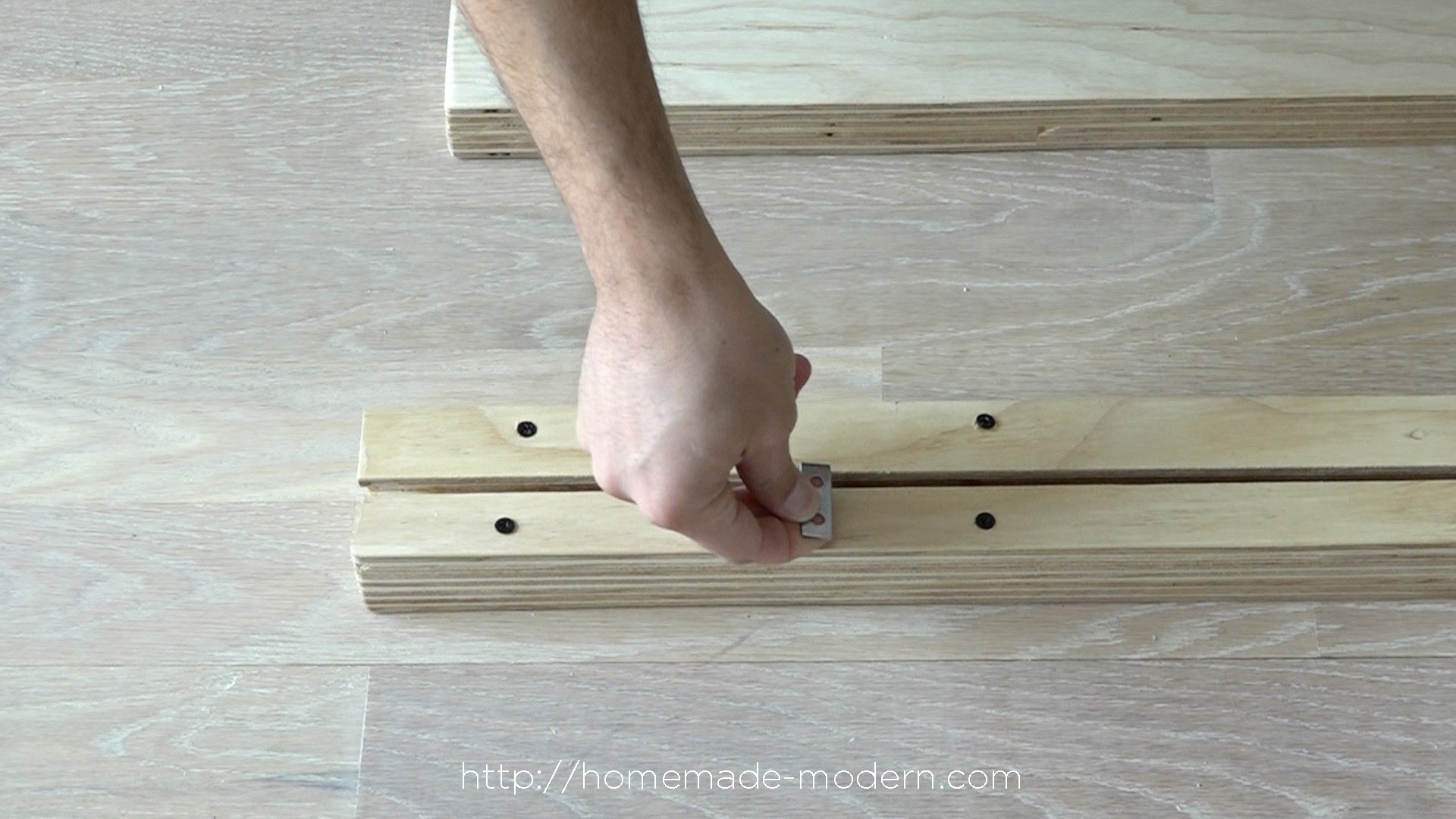

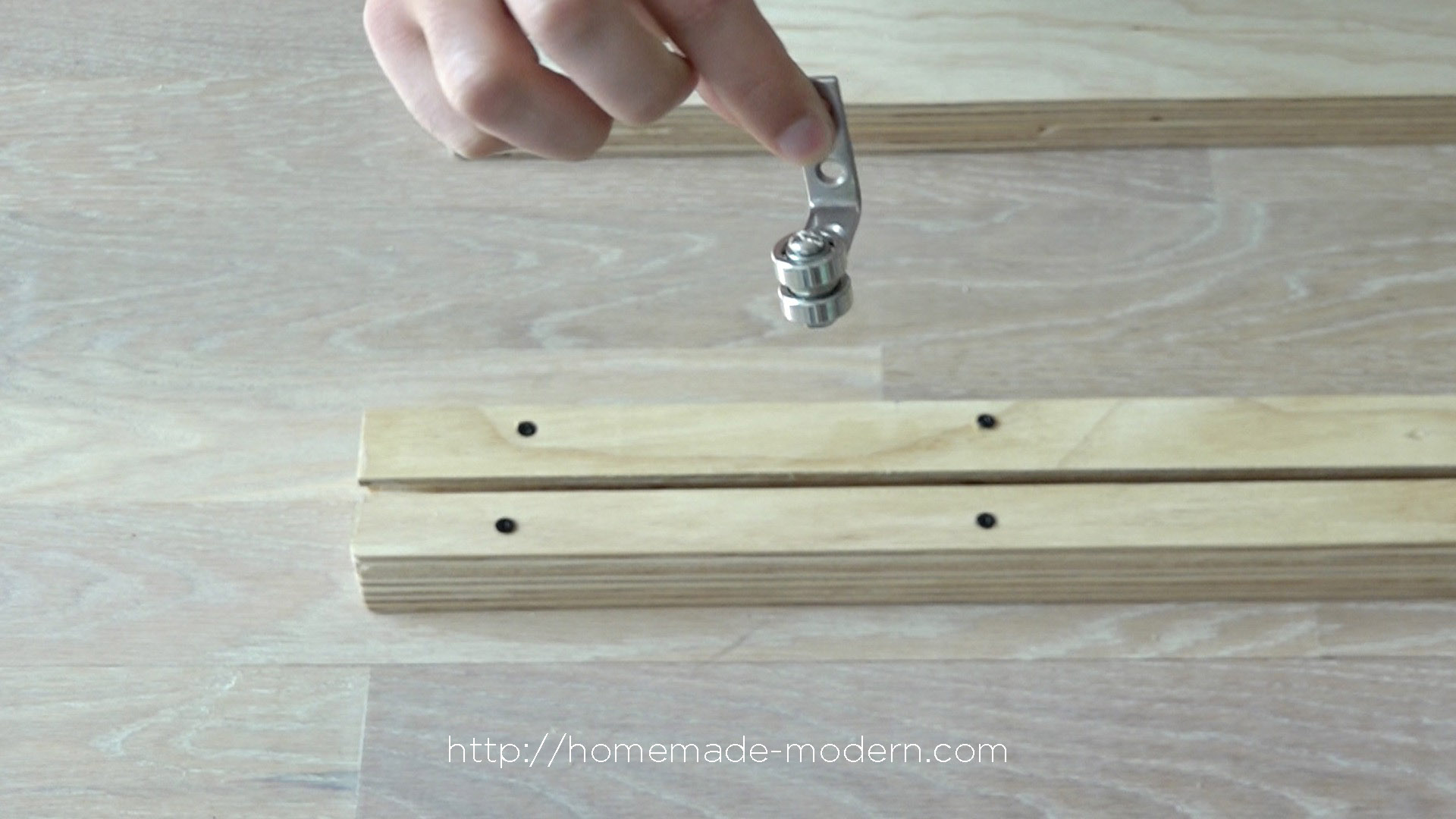

STEP 9: Check the Fit
The ball bearings and L brackets slide right into the tracks.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

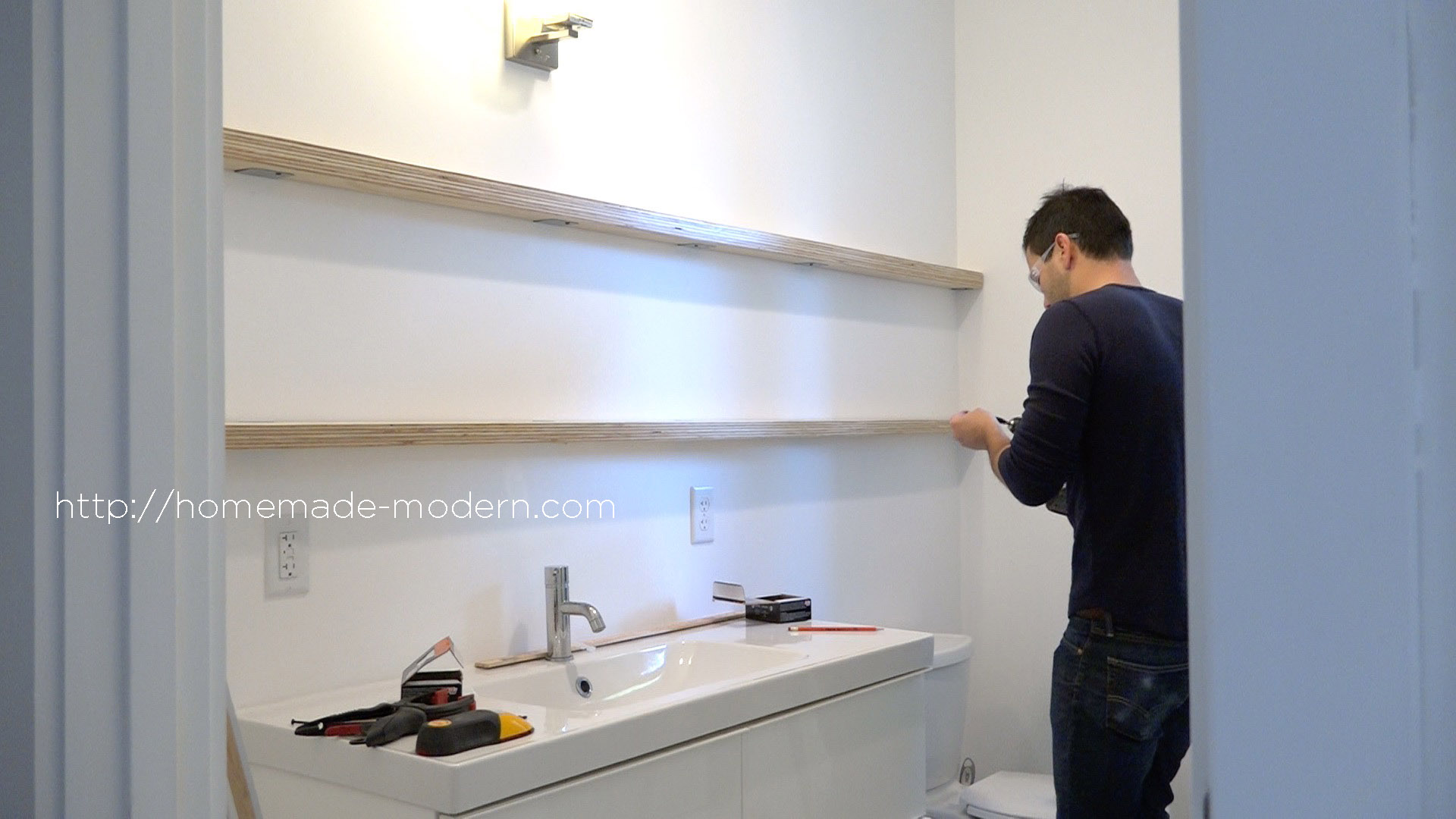

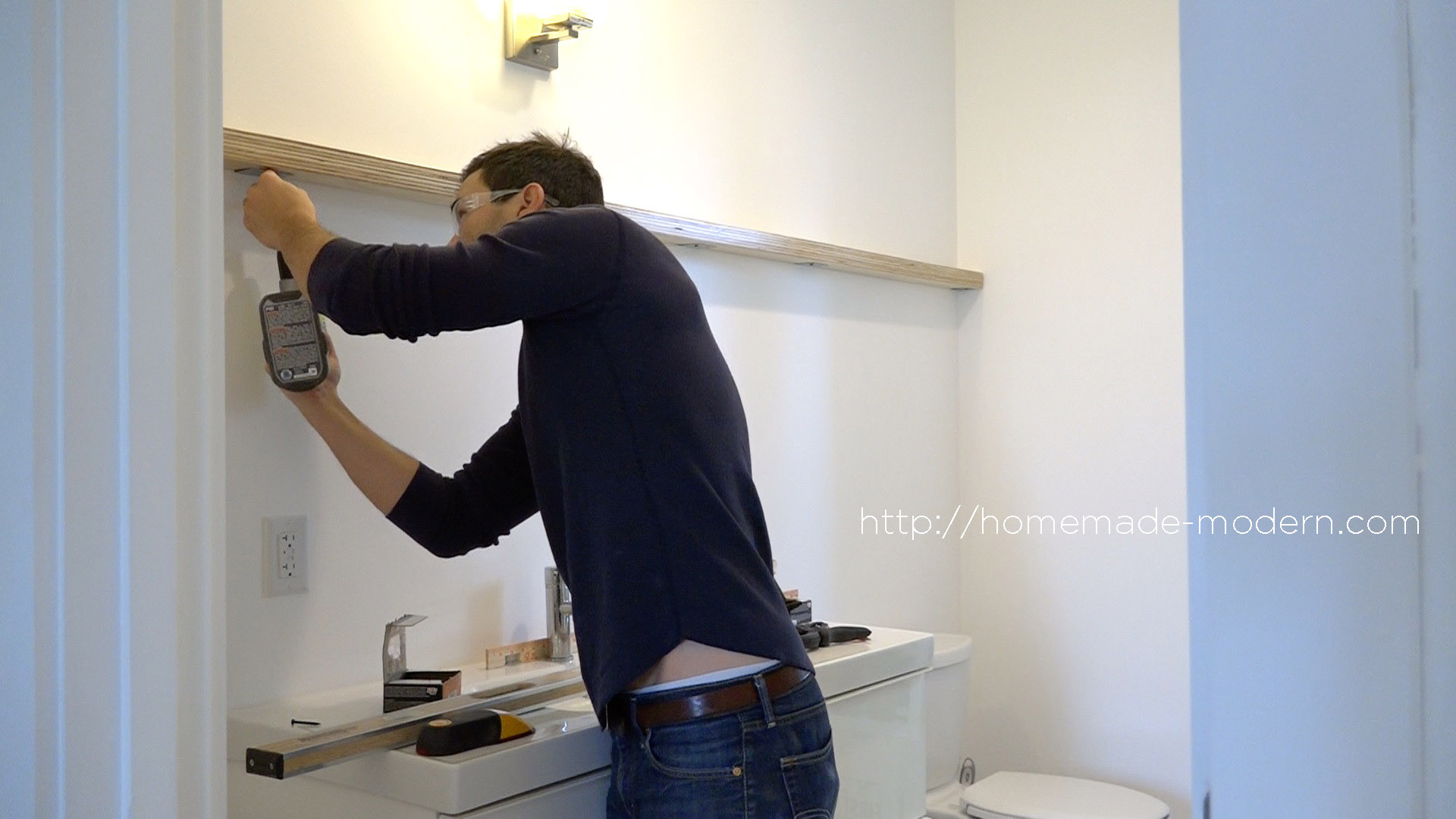

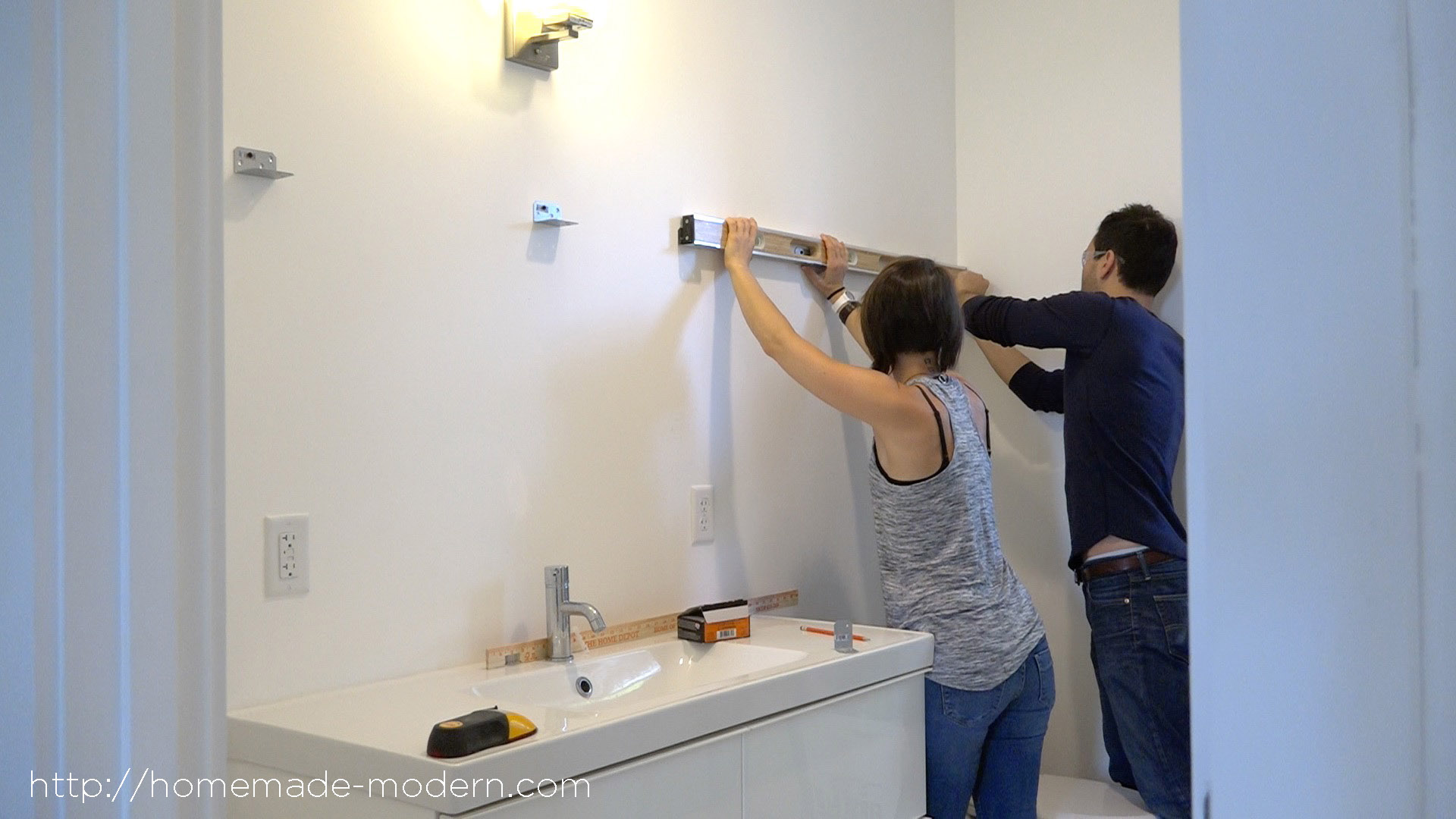

STEP 10: Install the Shelves
I used a level and stud finder to attach a series of brackets to the wall. I then screwed the shelves to the brackets.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

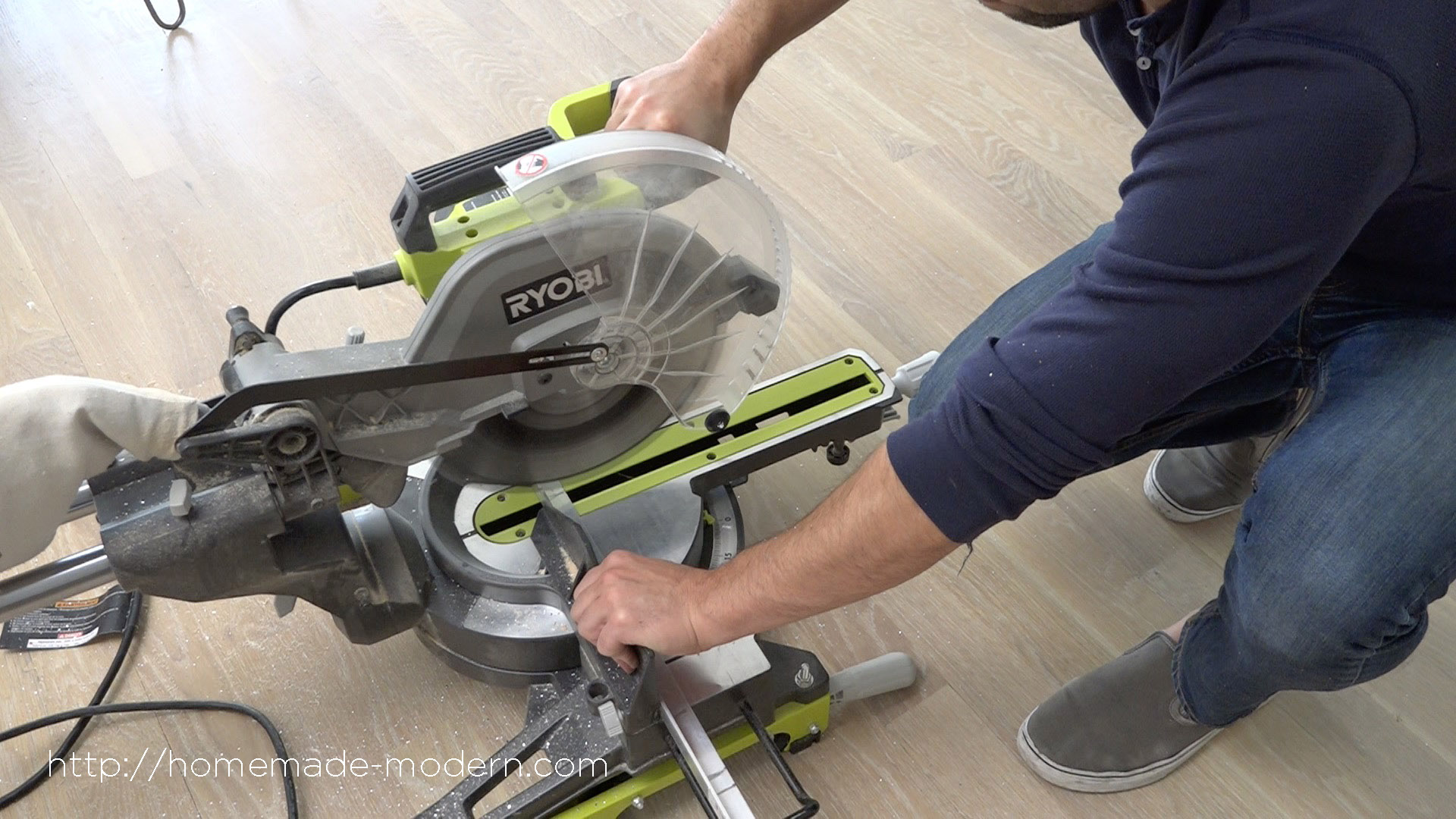

STEP 11: Cut the Aluminum
I cut the aluminum to length with my compound miter saw. I wanted the aluminum to be about 2” shorter than the mirror.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

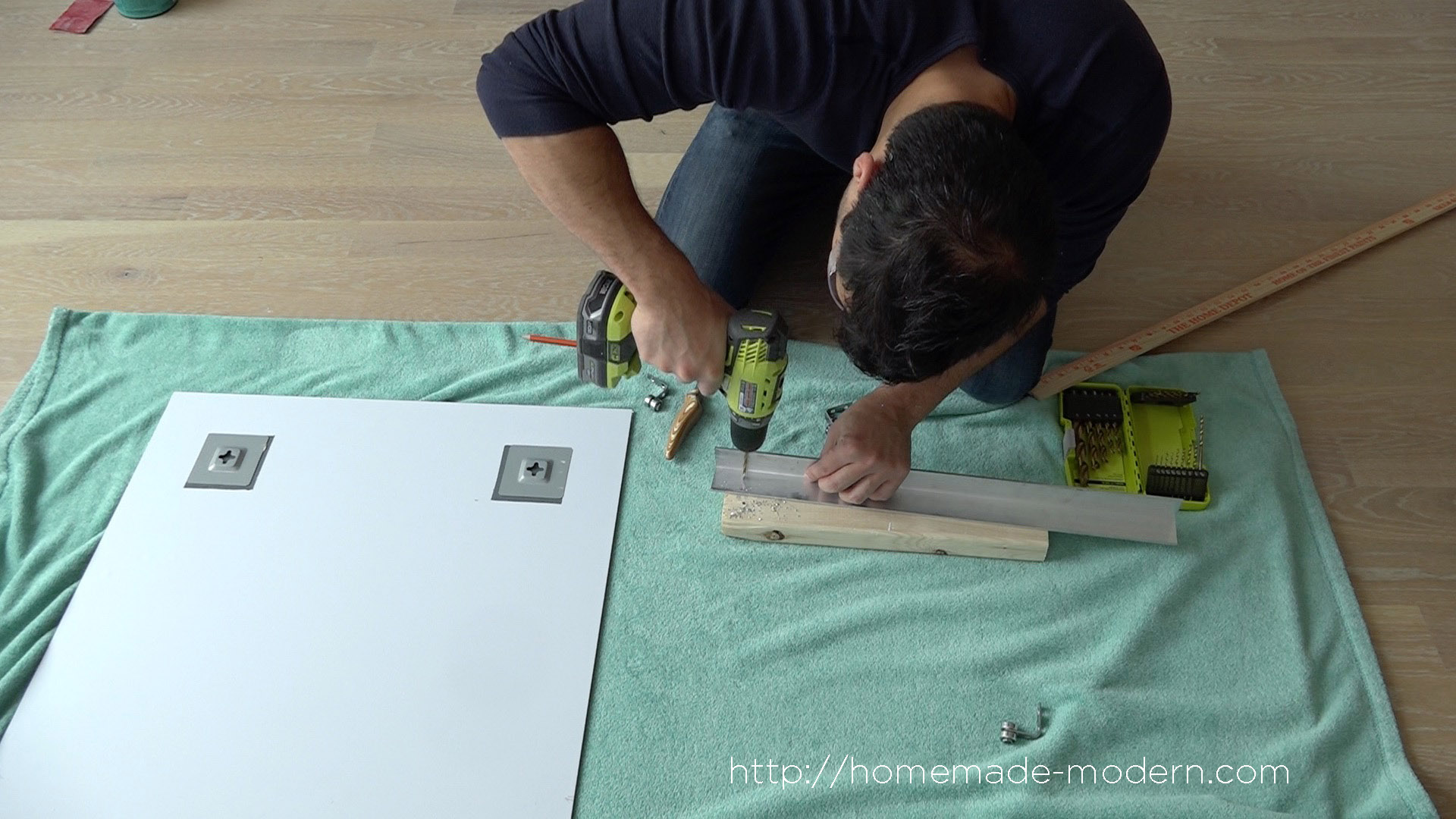

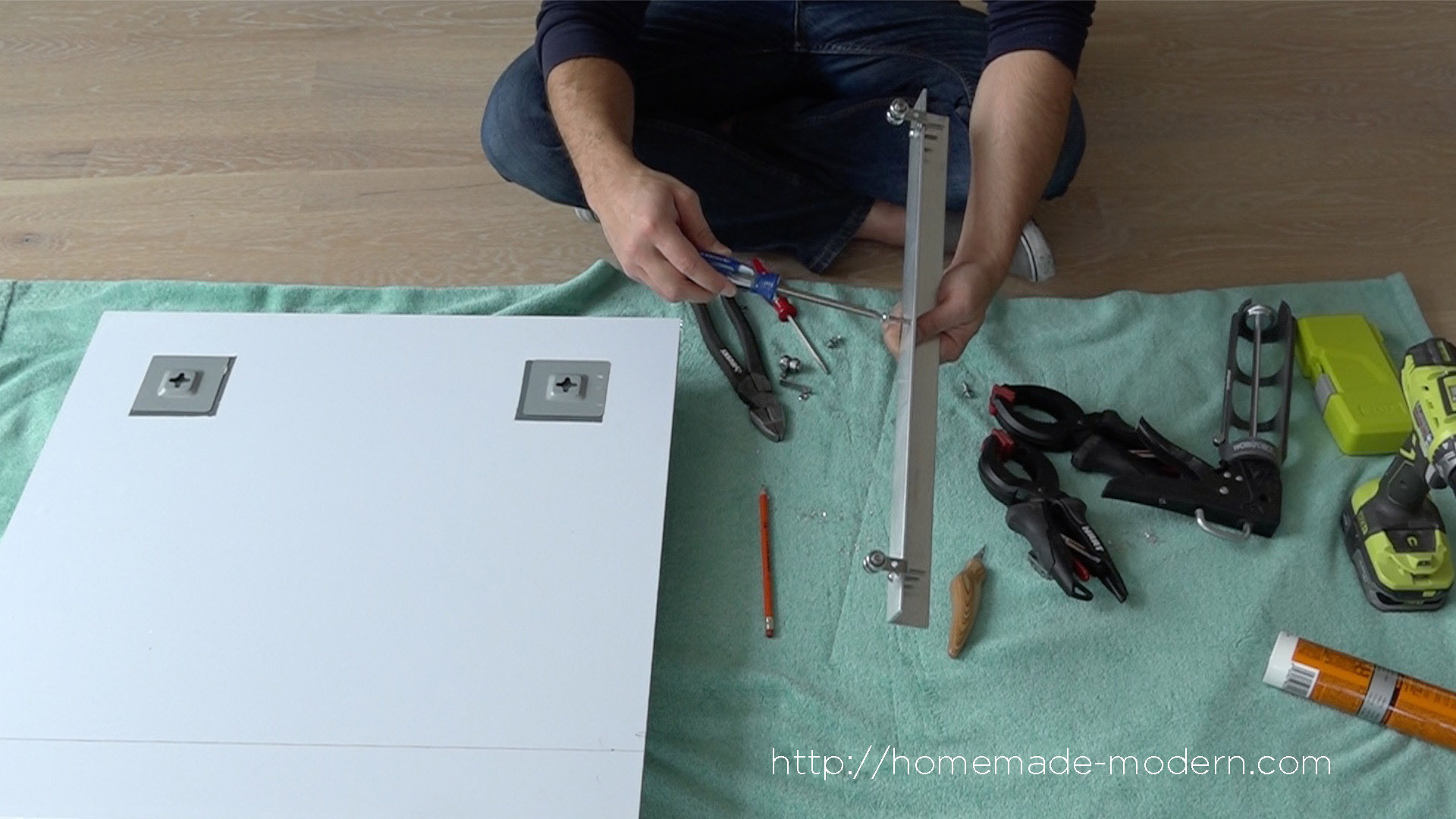

STEP 12: Drill Holes and Bolt on the Brackets
I drilled holes in the alumni and then bolted on the L-brackets.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

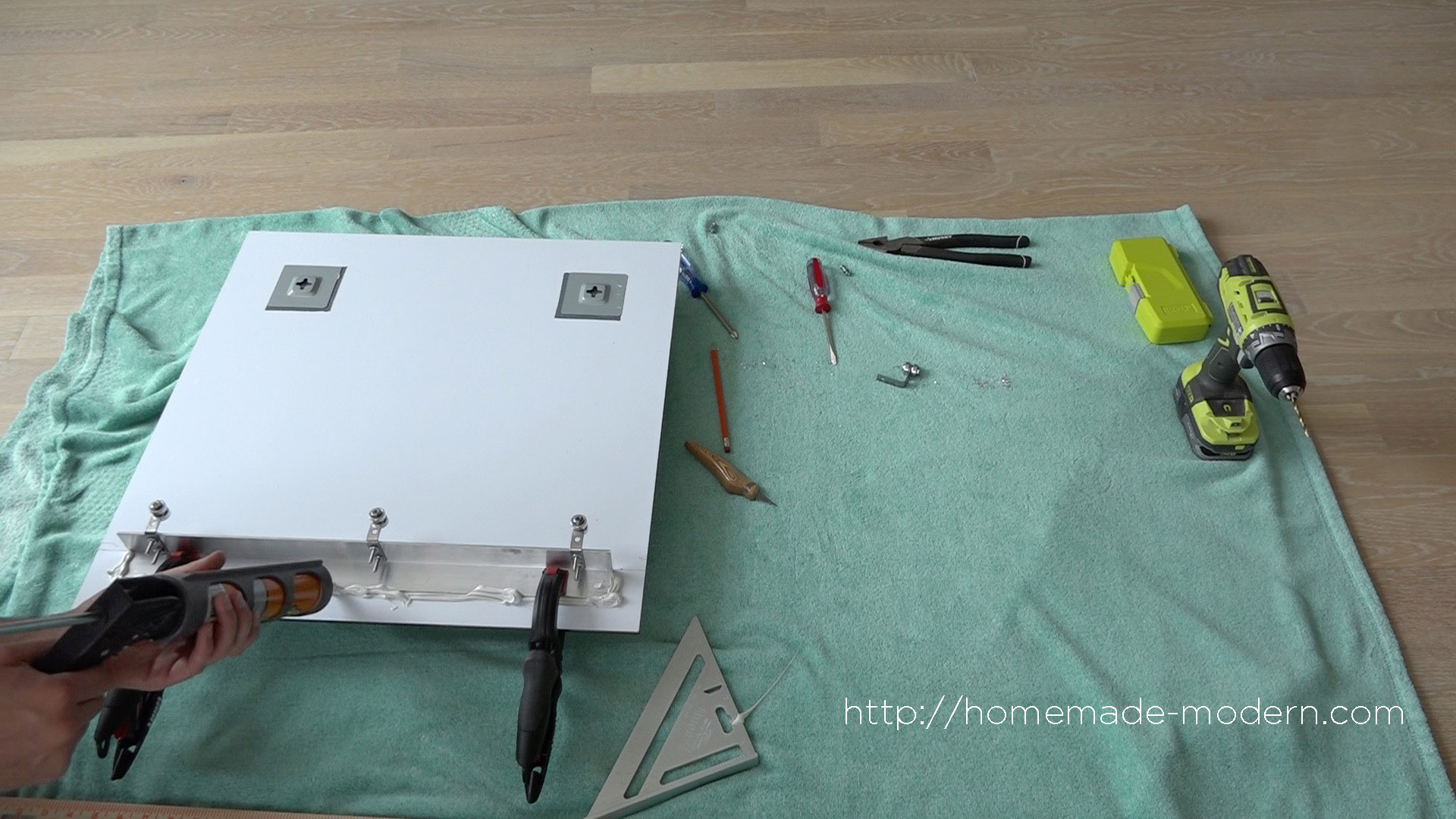

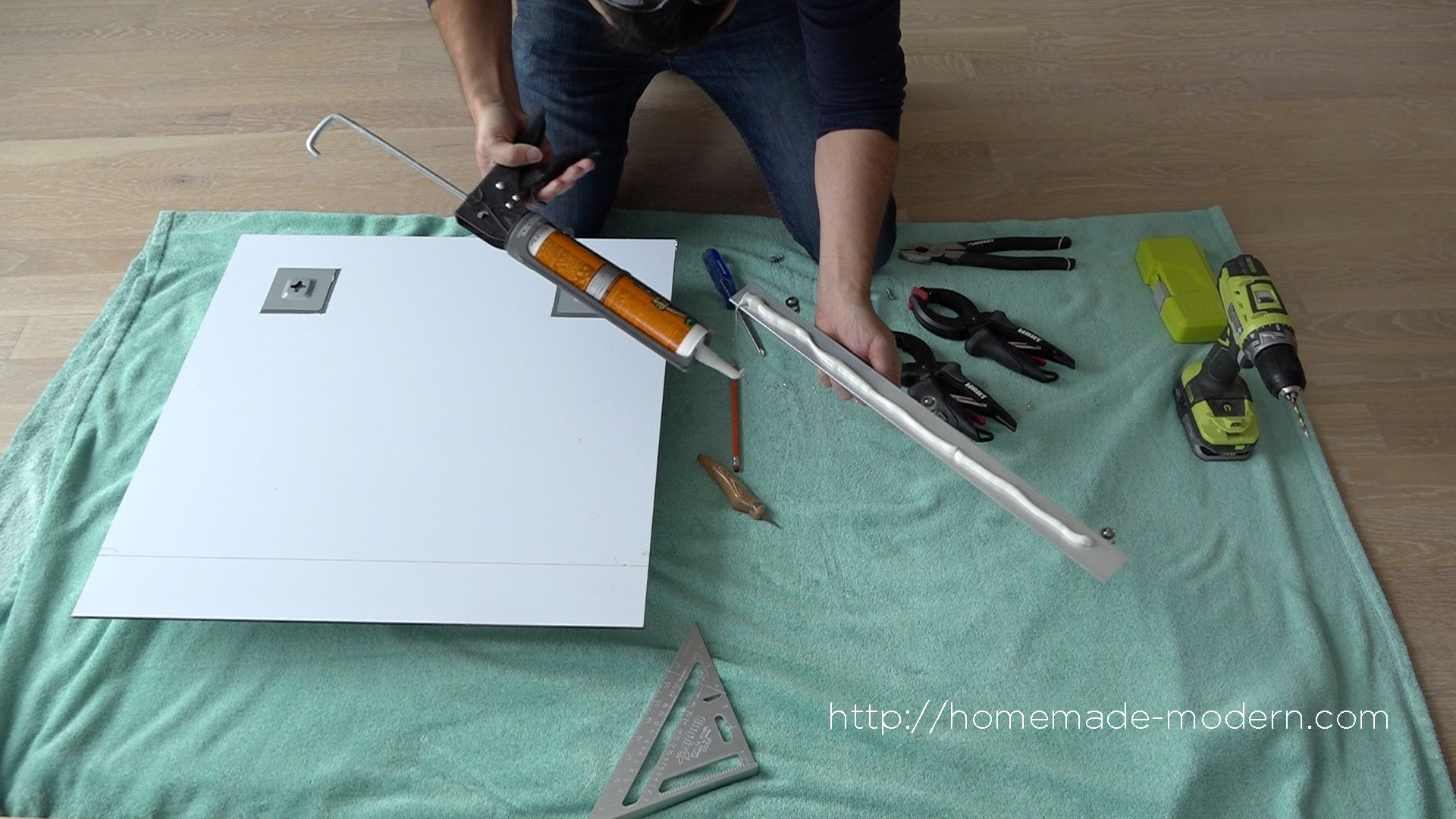

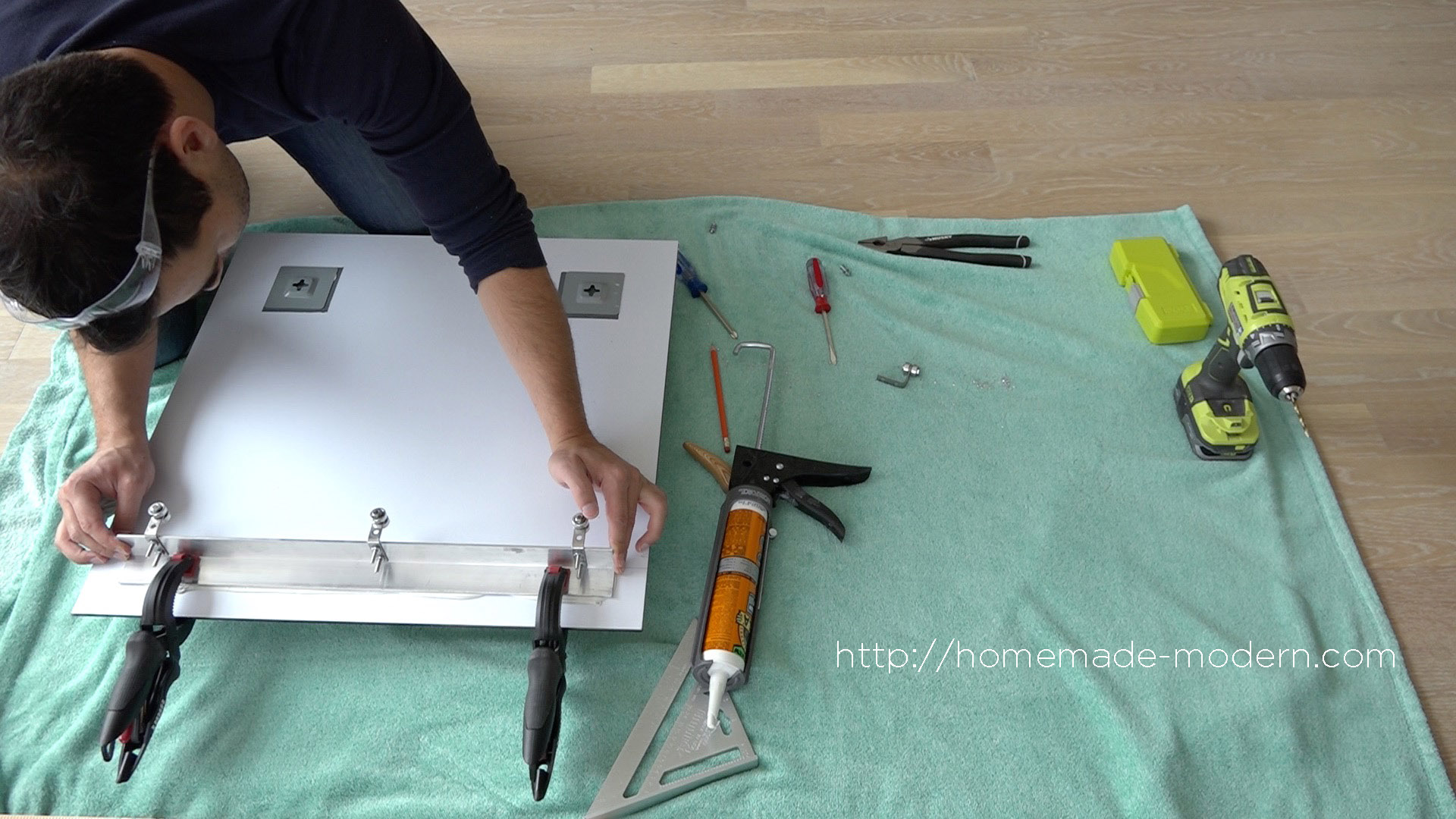

STEP 13: Glue the Aluminum to the Mirror
I used construction adhesive to glue the aluminum to the backside of the mirror. I clamped the mirror to the aluminum and let it cure for 2 full days. I also added a bead of adhesive over the back of the aluminum and the mirror.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

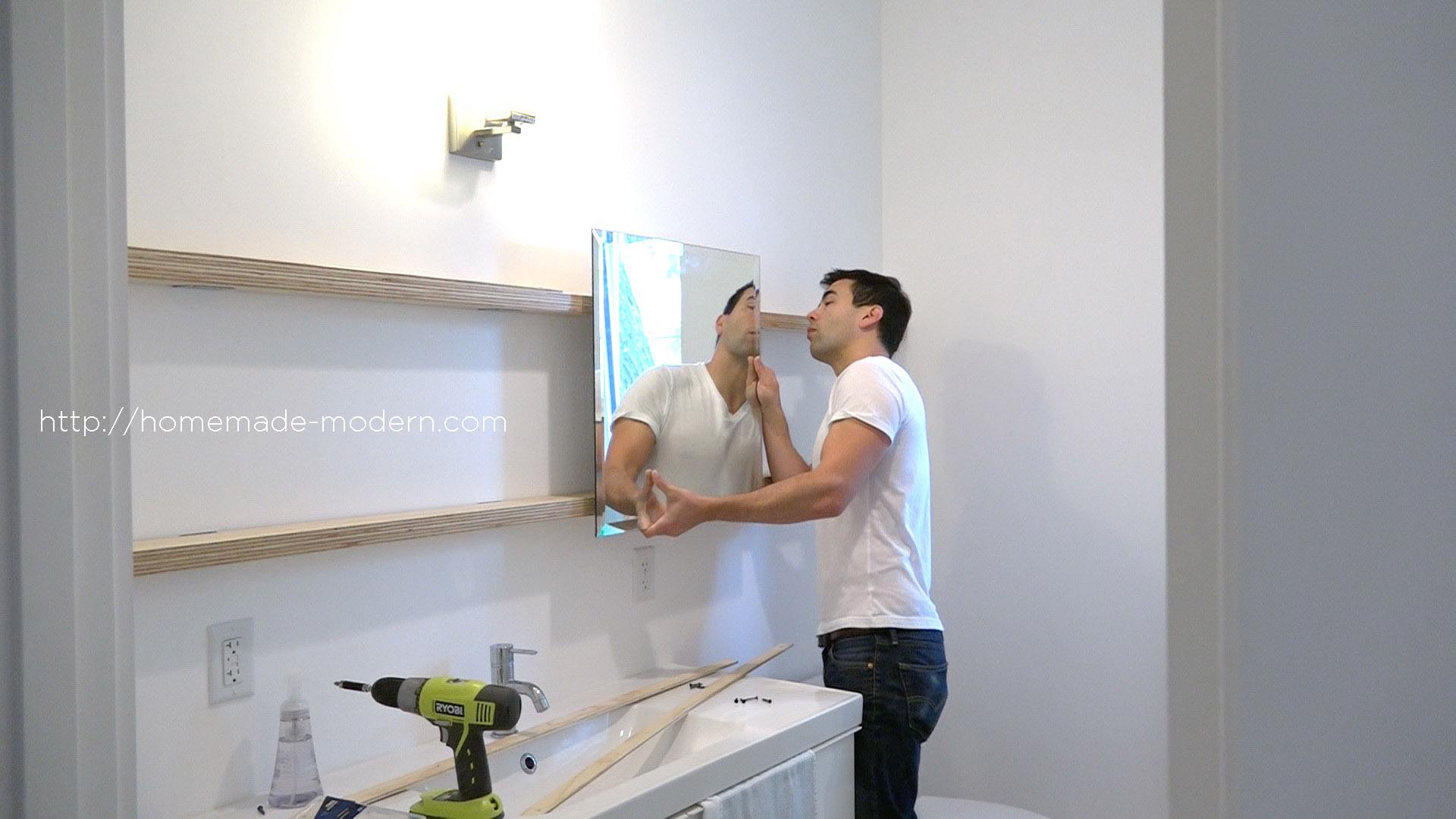

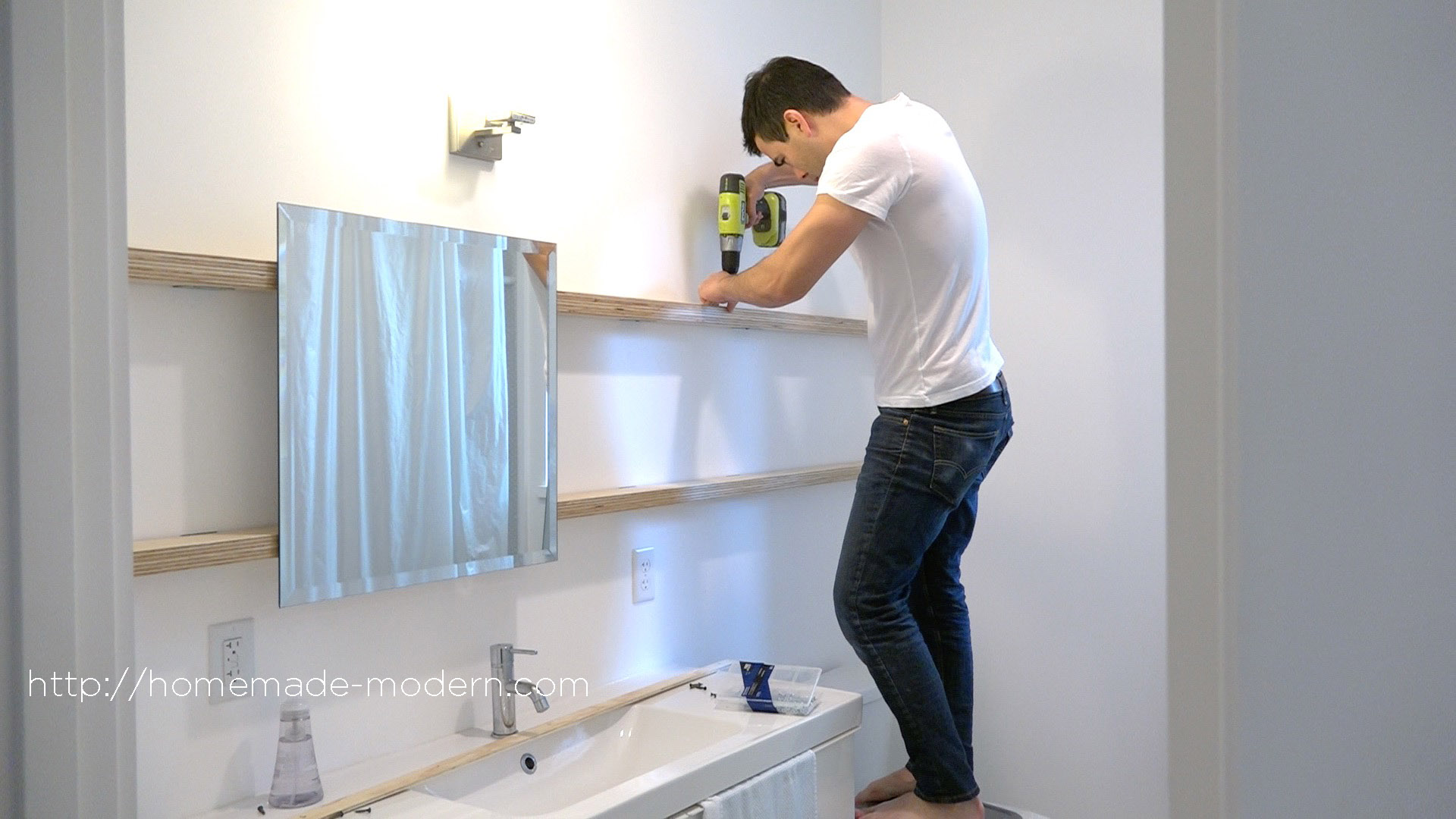

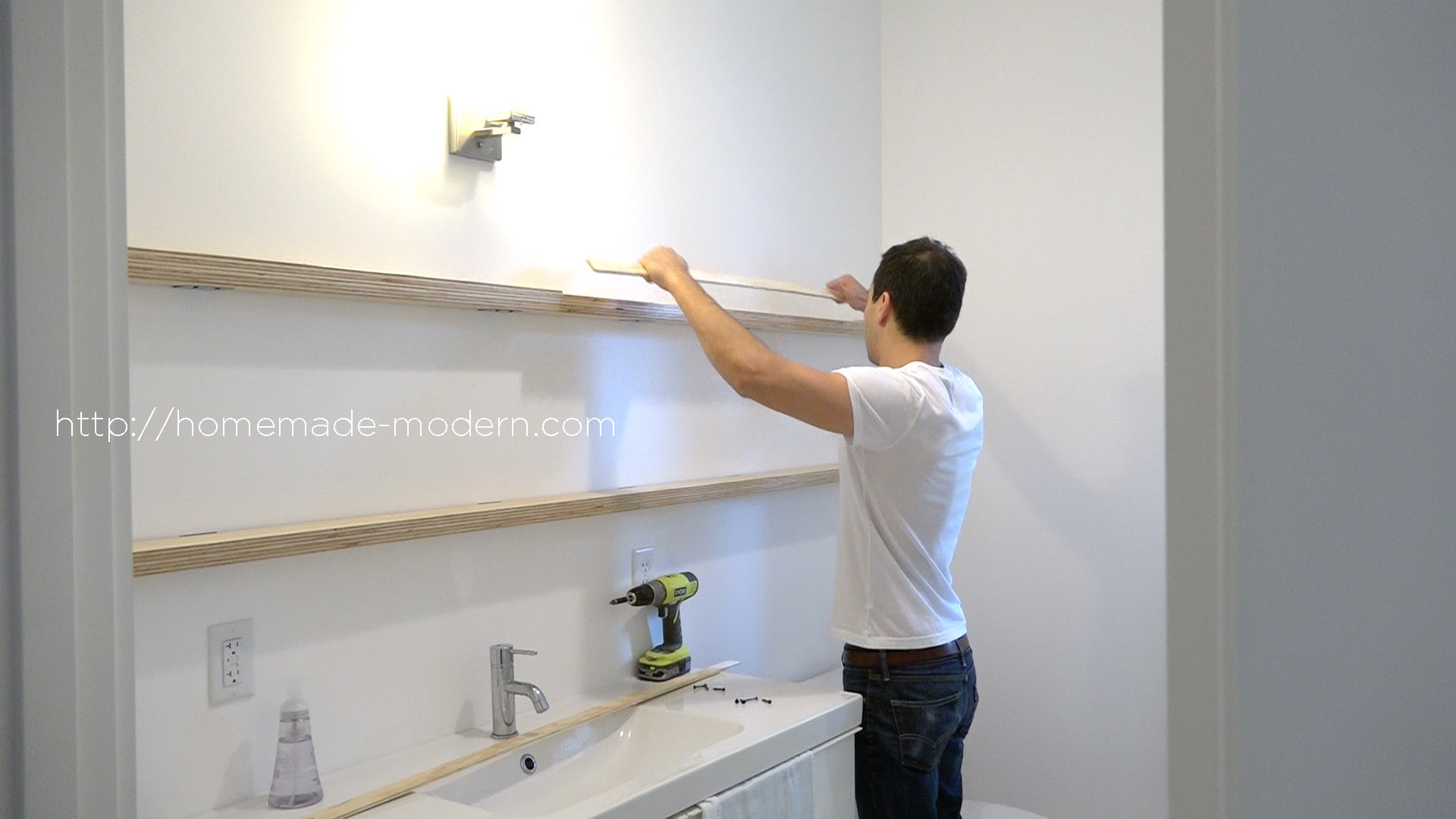

STEP 14: Install the Mirror
I removed one of the ¼” strips and then fit the ball bearings into the track before screwing the plywood back on.

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

This bathroom mirror features DIY hardware that slides on plywood shelves. Full instructions can be found at HomeMade-Modern.com

If you like this project, please share it!

If you want to see what we're working on next, follow us on Instagram: @benjaminuyeda and @ijessup.

Also check out our book for additional projects, DIY tips and guides.
